What Are SIM Card Connectors?
SIM card connectors are one of the essential components in electronic devices, widely used in smartphones, tablets, wearables, automotive electronics, and IoT devices. As 5G, IoT, and smart applications rapidly advance, the market demand for SIM card connectors continues to grow, and their technology is constantly evolving. This article will provide a detailed overview of SIM card connectors, including their definition, types, working principles, characteristics and advantages, applications, and more.
Catalog
I. What are SIM Card Connectors?
II. Types of SIM Card Connectors
III. Characteristics and Advantages
I. What are SIM Card Connectors?

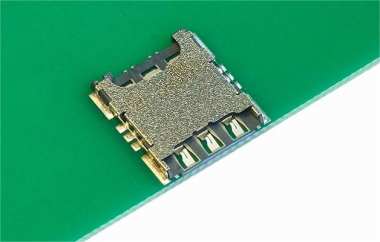

A SIM card connector (Subscriber Identity Module Connector) is a socket used to connect a SIM card to the motherboard or circuit board, enabling the transmission of data, signals, and power. It electrically connects the SIM card to the device's internal circuitry through metal contacts and plastic insulation. The design and structure of the SIM card connector need to meet high reliability and long lifespan requirements to ensure the stable operation of the device.
SIM card connectors follow international standards such as ISO, ETSI, and GSM, which specify the size, contact configuration, and electrical characteristics of the SIM card, ensuring compatibility with devices globally.
II. Types of SIM Card Connectors
There are several types of SIM card connectors based on design and function, including the following:
· Push-Pull Type: This type allows for manual insertion and removal of the SIM card using a sliding rail and card latch, with a metal housing for shielding. It is commonly used in mid-to-high-end smartphones and communication terminals.
· Push-Push Type: This connector automatically ejects the card when pressed, making it easy to replace without removing the casing. It is suitable for ultra-thin smart devices.
· Tray Type: Featuring a removable card tray design, this type supports single or dual SIM cards and is widely used in dual-SIM smartphones and tablets.
· Monomodule Type: Designed for high reliability and dust/waterproof (e.g., IP66/IP68), this type is used in aerospace, military, and industrial-grade applications.
III. Characteristics and Advantages
· Slim Design: The height can be reduced to below 1.18 mm while supporting up to 6-8 terminals.
· Low Contact Resistance: High-performance alloy contacts with gold plating reduce contact resistance to milliohm levels, extending the life of insertions and removals while improving corrosion resistance.
· Automation Compatibility: The design is compatible with SMT (Surface-Mount Technology) mounting, reel or tray packaging, improving production efficiency and reducing costs.
· Function Integration: Some products integrate card detection switches and locking mechanisms to indicate card status and prevent accidental disconnections.
IV. Applications
· Consumer Electronics: Essential for identity authentication and cellular communication in smartphones, tablets, wearables, and other devices.
· Automotive Electronics: Car infotainment systems, remote diagnostics, and OTA (Over-the-Air) upgrade modules rely on SIM card connectors to enable cellular network connectivity.
· IoT (Internet of Things): Devices such as smart meters, environmental monitoring systems, and logistics tracking rely on SIM card connectors for remote data transmission.
· Industrial and Medical: Industrial control terminals and remote patient monitoring devices require connectors with high reliability and protective features.
V. Conclusion
With the rise of eSIM and iSIM technologies, traditional physical SIM card connectors face pressure for replacement, but stable demand will remain in traditional terminals and specific industries. Modular designs combining multiple functions, such as SIM + microSD, and higher protection levels (IP6x) will see increased application in 5G, automotive IoT, and industrial IoT sectors. Innovations in materials and processes, such as super-fit contacts and new high-polymer insulators, will further enhance product performance and miniaturization.
