What Are Circular Connectors?
With the rapid development of industrial automation, smart manufacturing, rail transportation, and 5G communication, circular connectors have become crucial components for efficient and reliable connections. Specifically, M12 Power connectors, known for their high current handling capabilities, robust protective performance, and compact structure, have shown excellent performance in demanding environments. This article provides a comprehensive guide to circular connectors, including their definition, working principle, types, features, advantages, applications, and technological parameters, with a special focus on M12 Power connectors.
Catalog
I. What Are Circular Connectors?
III. Common Types of Circular Connectors
I. What Are Circular Connectors?

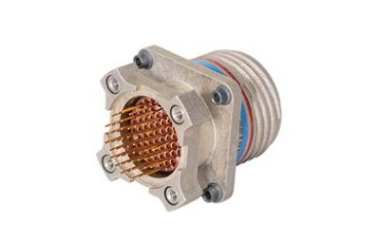

Circular connectors are multi-pin electrical connectors with cylindrical housings designed to transmit power, signals, or data between different devices. These connectors typically consist of a plug (male) and a socket (female), with electrical contact made through physical engagement.
A key feature of circular connectors is their modular design:
· Users can choose parameters such as the number of pins, coding method, wiring method (soldering/crimping/threaded), and protection class (e.g., IP67/IP68), depending on application requirements.
· The plugs and sockets can be freely combined, facilitating quick assembly, maintenance, and system expansion.
· The housing materials are diverse, including plastics, stainless steel, and nickel-plated copper, to meet various needs such as corrosion resistance and impact resistance.
II. Working Principle
The fundamental principle of circular connectors is that electrical current, voltage, or signals are effectively transmitted through contact between the plug and socket. When connected, the pins and holes form a low-resistance pathway. Additionally, features like threads, snap-fit, or push-pull locking mechanisms ensure that the connection remains stable and secure, preventing accidental disconnections.
Moreover, circular connectors are typically equipped with sealing rings and shielding layers, providing excellent protection against dust, moisture, and electromagnetic interference, ensuring reliability and safety in complex industrial environments.
III. Common Types of Circular Connectors
Circular connectors come in various types, and based on structure and application, they can generally be categorized as follows:
· M-Series Connectors: Representing M5, M8, M12, M23, these are suitable for different current, voltage, and data transmission applications.
· A/B/C/D/X Coded M12 Connectors: Differentiated by their coding method for applications such as power, signals, Ethernet, or PROFINET to prevent incorrect connections.
· Waterproof Circular Connectors: Typically rated IP67 or higher, ideal for outdoor or humid environments.
· High-Speed Signal Circular Connectors: Support high-speed communication protocols like Gigabit Ethernet or USB 3.0.
IV. Core Advantages
· Compact structure, space-saving design
· Multiple coding options to prevent incorrect insertion
· IP67/IP68 dust and water resistance
· Strong vibration and shock resistance, ideal for harsh industrial environments
· Support for hybrid signal, power, and data transmission
· Easy to plug and unplug, improving operational efficiency
V. Applications
· Industrial Automation: Connecting core devices such as PLCs, HMIs, sensors, and motors
· Robotics and Mechanical Arms: Ensuring efficient power and control signal transmission
· Smart Factories/Logistics Systems: Supporting modular equipment deployment and rapid replacement
· Rail Transportation and Subway Systems: Used in signal acquisition, power distribution, and other subsystems
· New Energy Equipment (e.g., PV/Wind Power): For inverters, data acquisition, and power supply modules
· Electric Vehicle Charging Stations: M12 connectors can be used for communication and low-voltage control module connections
VI. M12 Power Connectors
M12 Power connectors are specifically designed for high-current applications within the circular connector family. They inherit the compact, waterproof, and dustproof features of traditional M12 connectors while offering the following outstanding characteristics:
· High Current Capacity: Common specifications support up to 16A of current and 630V AC/DC, meeting the power supply needs of high-power systems like industrial motors and servo control.
· Multiple Coding Options: Including L-code (for DC power), T-code (for AC three-phase power), S-code (for single-phase motors), K-code (for three-phase AC), facilitating standardized wiring management.
· Enhanced Vibration Resistance: Featuring a threaded locking structure, ensuring stability and reliability even in vibrating environments.
· Space-saving Design: Compared to traditional industrial power interfaces, M12 Power connectors are smaller, making them ideal for installation in densely wired environments.
· Field Assemblability: Some models support tool-free assembly, significantly improving on-site installation and maintenance efficiency.
M12 Power connectors are gradually replacing traditional large industrial power connectors and becoming a key component in upgrading industrial power systems.
VII. Technological Parameters
When selecting circular connectors, key technical parameters (using M12 Power as an example) should be considered:
· Rated Current and Voltage: Must meet the maximum load of the equipment. M12 Power supports up to 16A/630V.
· Contact Resistance: Typically should be less than 10 mΩ to reduce heat generation and energy loss.
· Insulation Resistance: Generally requires >100 MΩ to prevent electrical leakage.
· Insertion and Extraction Life: Industrial-grade products usually support ≥1000 cycles, adaptable to frequent operation environments.
· Protection Class: Select based on the environment, with options such as IP67, IP68, or IP69K.
· Temperature Range: Typically from −40°C to +85°C, with some industrial products capable of handling temperatures up to +125°C.
VIII. Conclusion
As the demand for connectivity and data transmission stability grows in high-end manufacturing sectors like Industry 4.0, robotics, and smart transportation, circular connectors are evolving towards higher bandwidth, higher power density, and stronger intelligence. For example, connectors with smart recognition chips or high-speed connectors supporting industrial Ethernet TSN protocols are emerging as industry hotspots.
In particular, M12 Power connectors, with their "small size, high power" advantage, are extending from traditional devices to advanced applications in new energy and energy storage systems, holding significant potential for future applications.
