WYSBHVGXG: Features, Specs & More
In the fast-evolving world of wireless connectivity, device designers face constant pressure to integrate faster, smaller, and more efficient components. That’s where the Taiyo Yuden WYSBHVGXG module steps in—a high-performance WLAN + Bluetooth combo solution engineered for demanding IoT and embedded applications. In this comprehensive article, we'll delve into the intricacies of the WYSBHVGXG, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
WYSBHVGXG's Overview

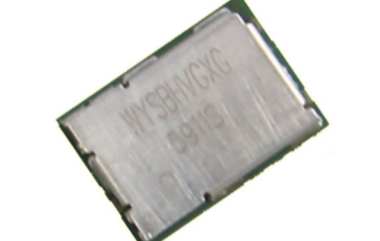

The WYSBHVGXG is a compact wireless module that combines WLAN and Bluetooth (BT) capabilities into a single package. Built using IEEE 802.11a/b/g/n/ac standards, it enables seamless wireless communication for high-speed data transfers and energy-efficient Bluetooth Low Energy (BLE) connections. Designed in a compact LLCC package with 70 pins, it's ready for surface mount applications, making it ideal for integration into a wide range of embedded systems.
Key Features
Let's delve into the standout features that make the WYSBHVGXG a standout in the world of electronics:
· Supports IEEE 802.11a/b/g/n/ac Wi-Fi technology.
· Integrates Bluetooth v4.2 BLE for low-energy communication.
· Operates on dual bands—2.4GHz and 5GHz.
· Provides a maximum Wi-Fi data rate of 433.3 Mbps.
· Offers a high Wi-Fi output power of 14 dBm.
· Works with SDIO 3.0 for WLAN and UART for Bluetooth interfaces.
· Designed in a compact 12.6 x 8.9 x 1.9 mm LLCC package.
· Supports operating temperatures from -30°C to +85°C.
· Supplied in tape and reel packaging for easy assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the WYSBHVGXG:
Type | Parameter |
Construction | WLAN+BT |
Style | Module |
WLAN Maximum Data Rate (MBps) | 433.3 |
WLAN Frequency Range (MHz) | 2400(Typ)|5000(Typ) |
BT Interface | SDIO 3.0/UART |
WLAN Maximum Output Power | 14dBm |
Minimum Operating Temperature (°C) | -30 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
BT Protocol Supported | Bluetooth v4.2(BLE) |
WLAN Technology | IEEE 802.11a/b/g/n/ac |
Mounting | Surface Mount |
Package Height | 1.9(Max) |
Package Width | 8.9 |
Package Length | 12.6 |
PCB changed | 70 |
Standard Package Name | LCC |
Supplier Package | LLCC |
Pin Count | 70 |
Applications
The WYSBHVGXG module is engineered for a wide variety of wireless communication applications, including:
· IoT Gateways and Smart Home Devices
· Wearable Technology and Healthcare Equipment
· Industrial Automation Systems
· Consumer Electronics such as TVs and Set-Top Boxes
· Embedded Systems in automotive and robotics
· Wireless Sensors and control modules
With its small footprint and high-speed wireless capability, it's a perfect choice for space-constrained applications that require dependable dual-band Wi-Fi and BLE.
WYSBHVGXG's Manufacturer
TAIYO YUDEN, established in 1950, has been engaged in research, development and production of capacitors, inductors, circuit modules, and SAW/FBAR devices under the philosophy that the process of product commercialization should start with material development. TAIYO YUDEN's extensive range of products demonstrates world-leading support of development and progress in the information technology and electronics industries. In addition, TAIYO YUDEN is proactively pursuing and expanding business activities into energy-related fields as well as strengthening their position in existing applications such as smartphones, PCs and TVs.
Conclusion
The Taiyo Yuden WYSBHVGXG module delivers an ideal balance of performance, efficiency, and form factor. Whether you're developing an IoT-enabled wearable, a smart appliance, or a compact industrial controller, this WLAN + Bluetooth combo module provides the dual connectivity needed for modern applications. Its reliable dual-band Wi-Fi, BLE 4.2 support, and small surface-mount design make it a solid investment for next-gen wireless designs.
