What Are Coaxial Connectors?
With the continuous advancement of technology, particularly the widespread application of RF and microwave technologies, coaxial connectors have become essential components in various industries such as communications, broadcasting, automotive, and aerospace. They play an irreplaceable role in signal transmission, shielding, and interference protection. This article will provide a detailed introduction to coaxial connectors, including their definition, working principle, types, characteristics, advantages, applications, and shielding technology.
Catalog
I. What are Coaxial Connectors?
III. Types of Coaxial Connectors
IV. Characteristics and Advantages
I. What are Coaxial Connectors?

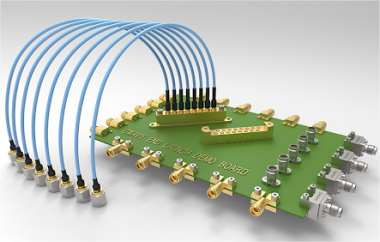

Coaxial connectors are RF connectors that connect coaxial cables to other devices, such as antennas, modules, or cables. They are widely used in electronic systems that require stable signal transmission and interference protection. Due to their unique structural design, coaxial connectors effectively protect the signals from external electromagnetic interference during transmission, ensuring signal stability and quality. Their design supports high-frequency characteristics, enabling signal transmission from DC to several GHz.
A coaxial connector consists of three main components:
· Center Conductor: The part that transmits the signal, usually made of copper or other highly conductive materials.
· Dielectric Insulation Layer: Located between the center conductor and the outer conductor, typically made of plastic or ceramic materials to isolate them and maintain electrical separation.
· Outer Conductor (Shielding Layer): Surrounding the dielectric layer, typically made of metal (such as copper or aluminum), which provides shielding and grounding.
This structure effectively prevents external electromagnetic interference from affecting the signal while also preventing signal leakage.
II. Working Principle
The working principle of a coaxial connector is based on the concept of "coaxial" transmission, where signals are transmitted through coaxial cables and connectors with concentric structures. The signal is transmitted through the center conductor, while the outer conductor acts as a shield, preventing external electromagnetic interference from affecting the signal quality. During signal transmission, the electrical contact between the center and outer conductors is achieved through a bayonet or threaded connection. This tight connection ensures signal integrity and efficiency. Additionally, coaxial connectors typically use impedance matching of 50Ω or 75Ω, ensuring that there is no signal reflection during transmission, reducing the Voltage Standing Wave Ratio (VSWR), and improving transmission efficiency and stability.
III. Types of Coaxial Connectors
Coaxial connectors come in various types, each suited for different applications. Common types include:
· BNC (Bayonet Neill-Concelman) Connector: Primarily used for video signal transmission, with a convenient bayonet coupling mechanism, suitable for low to mid-frequency applications.
· TNC (Threaded Neill-Concelman) Connector: Similar to BNC but with a threaded locking mechanism, making it suitable for higher-frequency applications with a range up to 11GHz.
· N-Type Connector: Used for high-power applications, with a frequency range of up to 11GHz, commonly used in wireless communication base stations and broadcast systems.
· SMA (SubMiniature version A) Connector: A miniature connector with a threaded locking design, suitable for high-frequency applications, supporting up to 18GHz.
· F-Type Connector: Mainly used for television and broadband internet connections, commonly used in home applications and cable TV systems.
In addition, with technological advancements, smaller connectors like SMB and MMCX are available, which are suitable for space-constrained applications.
IV. Characteristics and Advantages
Coaxial connectors offer several significant characteristics and advantages, making them indispensable components in various electronic systems:
· Excellent Shielding: The coaxial structure naturally shields signals, effectively suppressing electromagnetic interference (EMI) and ensuring signal integrity.
· Wide Bandwidth: Supports signal transmission from DC to several tens of GHz, meeting the needs of high-frequency applications such as 5G, millimeter waves, and satellite communications.
· Low Insertion Loss and Low VSWR: Precision mechanical fitting and impedance matching design can keep insertion loss within 0.1–0.5 dB, with a typical VSWR <1.2.
· High Reliability: The bayonet and threaded designs ensure stable connections even after repeated mating and unmating, making them suitable for industrial and military-grade environments.
V. Shielding Technology
The shielding technology of coaxial connectors is one of their most important advantages. The shielding effectively prevents external electromagnetic interference (EMI) from disturbing the signal, ensuring signal purity. The outer conductor, as the shielding layer, directs external interference signals to the ground, preventing them from affecting the signal. Additionally, shielding technology helps prevent signal leakage, reducing interference between adjacent cables. In high-precision, high-frequency applications, shielding performance is a crucial factor in signal quality.
VI. Applications
Coaxial connectors are widely used in various fields, especially in RF and microwave technology. Major applications include:
· Wireless Communication and Broadcasting: Signal transmission between base stations, antennas, transmitters, and receivers.
· Automotive Electronics: In-vehicle wireless communication, Vehicle-to-Everything (V2X) systems, and in-vehicle radar systems.
· Medical Equipment: Signal transmission in medical devices such as ultrasound and X-ray imaging systems.
· Military and Aerospace: Used in satellite communication, radar systems, and military communication equipment.
· Consumer Electronics: In devices such as televisions, video surveillance, and audio systems.
VII. Conclusion
As a crucial electronic component, coaxial connectors are widely used in various fields due to their exceptional shielding performance, low insertion loss, and high reliability. With the continuous advancement of technology, especially the rapid development of emerging fields like 5G, the Internet of Things (IoT), automotive electronics, and aerospace, the demand for coaxial connectors continues to grow. In the future, with continuous technological innovation, the performance and application scenarios of coaxial connectors will keep expanding.
