ASDM1-12.000MHZ-LC-T: Features, Specs & More
When precision timing is critical in electronics, choosing the right oscillator can make all the difference. The Abracon LLC ASDM1-12.000MHZ-LC-T is a MEMS-based 12MHz clock oscillator designed to deliver stable and reliable performance in demanding environments. In this comprehensive article, we'll delve into the intricacies of the ASDM1-12.000MHZ-LC-T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ASDM1-12.000MHZ-LC-T's Overview
ASDM1-12.000MHZ-LC-T's Manufacturer
ASDM1-12.000MHZ-LC-T's Overview

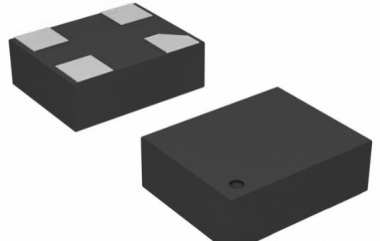

Simply put, the ASDM1-12.000MHZ-LC-T is a MEMS (Micro-Electro-Mechanical Systems) clock oscillator. It generates a precise 12 MHz frequency signal used to synchronize electronic circuits. Unlike traditional quartz oscillators, MEMS oscillators use silicon-based microstructures that provide enhanced robustness against shock, vibration, and temperature variations. This makes the ASDM1 model a perfect fit for applications where reliability is non-negotiable.
Key Features
Let's delve into the standout features that make the ASDM1-12.000MHZ-LC-T a standout in the world of electronics:
· Provides a stable 12 MHz clock frequency.
· Frequency stability is ±50 ppm ensuring consistent timing.
· Frequency aging rate of ±5 ppm per year guarantees long-term reliability.
· Load capacitance is 15 pF, compatible with standard circuit designs.
· Maximum symmetry of 55% supports balanced signal output.
· Uses LVCMOS output for easy interface with digital circuits.
· Operates on a typical supply voltage of 3.3V, suitable for low-power applications.
· Wide operating temperature range from -40°C to 85°C ensures reliability in harsh conditions.
· Compact 4-pin QFN surface mount package reduces PCB space usage.
· Packaged in tape and reel format for automated assembly processes.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ASDM1-12.000MHZ-LC-T:
Type | Parameter |
Type | Clock Oscillator |
Standard Frequency (MHz) | 12 |
Frequency Stability (ppm) | ±50 |
Frequency Aging (ppm/Year) | ±5 (1st) |
Load Capacitance (pF) | 15 |
Maximum Symmetry (%) | 55 |
Output Level | LVCMOS |
Minimum Operating Supply Voltage (V) | 3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Typical Operating Supply Voltage (V) | 3.3 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Width | 2 |
Package Length | 2.5 |
PCB changed | 4 |
Standard Package Name | QFN |
Supplier Package | QFN |
Pin Count | 4 |
Lead Shape | No Lead |
* ASDM1-12.000MHZ-LC-T's Datasheet
Applications
The versatility of this oscillator shines through its broad application range:
· CCD clock for video tape recorder (VTR) cameras.
· Timing in equipment connected to PCs.
· Low profile and compact consumer electronics.
· Computers and peripherals requiring precise clock signals.
· Portable electronics that demand low power and reliability.
· Industrial equipment exposed to vibration, shocks, and humid environments.
· Military and automotive electronics with strict durability requirements.
ASDM1-12.000MHZ-LC-T's Manufacturer
Abracon Corporation, established in 1992, is a leading global supplier of Frequency Control, Signal Conditioning, Clock Distribution, and Magnetic Components. ABRACON has ISO9001-2000 quality certification and offers a wide range of high quality microprocessor crystals, crystal oscillators, SAW devices, and a complete line of magnetic components.
Conclusion
The Abracon LLC ASDM1-12.000MHZ-LC-T MEMS oscillator is a reliable, compact, and highly stable timing solution ideal for a variety of electronics applications, from consumer gadgets to demanding industrial environments. Its advanced MEMS technology combined with a robust design offers precision, longevity, and ease of integration.
