TSB12LV32PZ: Features, Specs & More
When it comes to designing robust communication systems, the TI TSB12LV32PZ stands out as a reliable and compliant general-purpose link layer controller. Manufactured by Texas Instruments, this device supports IEEE 1394 standards and is tailored for a variety of electronics applications requiring fast and stable data transfer. In this comprehensive article, we'll delve into the intricacies of the TSB12LV32PZ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TSB12LV32PZ's Overview
The TI TSB12LV32PZ is a general-purpose link layer controller that manages data transmission and communication protocols in IEEE 1394 networks. It acts as the bridge between physical hardware and higher-level software protocols, ensuring data packets are correctly formatted, transmitted, and received. This device supports the IEEE 1394-1995 and IEEE 1394a-2000 interface standards, making it suitable for high-speed serial bus communication, commonly used in multimedia devices and professional equipment.
Key Features
Let's delve into the standout features that make the TSB12LV32PZ a standout in the world of electronics:
· It is compliant with IEEE 1394-1995 and IEEE 1394a-2000 standards.

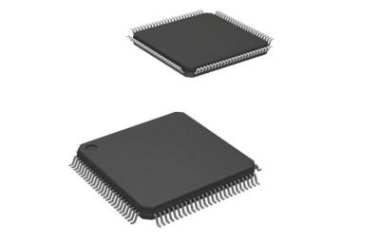

· The device comes in a 100-pin Low-profile Quad Flat Package (LQFP).
· It supports surface mount technology (SMT) for efficient PCB integration.
· The maximum package dimensions are 14.2 mm by 14.2 mm with a height of 1.45 mm.
· It operates reliably between 0°C to 70°C operating temperature range.
· The pin configuration includes 100 pins with gull-wing lead shapes for robust soldering.
· Packaging is available in trays for bulk use in manufacturing.
· It offers excellent data integrity and protocol compliance for IEEE 1394 networks.
· The device supports high-speed data transfer rates essential for multimedia and industrial applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TSB12LV32PZ:
Type | Parameter |
Function | Compliant General-Purpose Link Layer Controller |
Interface Standards | IEEE 1394-1995|IEEE 1394a-2000 |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 70 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.45(Max) |
Package Width | 14.2(Max) |
Package Length | 14.2(Max) |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
Applications
The TI TSB12LV32PZ is widely used in applications requiring efficient and reliable IEEE 1394 communication. Some common use cases include:
· Multimedia devices such as digital video cameras and camcorders.
· Professional audio/video equipment for high-speed data streaming.
· Industrial automation systems requiring real-time data exchange.
· Networking and communication devices that rely on IEEE 1394 protocols.
· Embedded systems that require robust link layer control for serial bus data.
TSB12LV32PZ's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TSB12LV32PZ is a robust, compliant, and versatile general-purpose link layer controller designed for high-speed IEEE 1394 data communication. Its reliable operation within a broad temperature range, coupled with a compact LQFP package, makes it ideal for integration into modern electronics requiring efficient serial bus communication.
