What is a Vibrating Wire Transducer?
As a key representative of high-precision frequency-type sensors in the electronic components industry, the vibrating wire transducer (VWT) is widely used across civil engineering, geological monitoring, industrial automation, and other fields. Thanks to its exceptional stability, strong anti-interference capability, and long-term reliability, it has become a preferred sensor for many critical applications. With the advancement of wireless technology, wireless vibrating wire data acquisition systems are increasingly popular. However, practical use still encounters some common issues. This article provides a systematic overview of vibrating wire transducers, including their definition, working principle, classification, features, and common faults in wireless acquisition devices.
Catalog
I. What is a Vibrating Wire Transducer?
III. Classification of Vibrating Wire Transducers
V. Common Issues with Wireless Vibrating Wire Data Acquisition Systems
I. What is a Vibrating Wire Transducer?
A vibrating wire transducer works by exploiting the change in resonance frequency of a tensioned metal wire caused by variations in external physical quantities. By measuring frequency changes, it can accurately reflect mechanical quantities such as strain, pressure, and displacement. Its output is a frequency signal, which naturally offers strong immunity to interference, making it one of the top sensor choices for structural health monitoring and geological engineering.
II. Working Principle
At the core of the vibrating wire transducer is a taut metal wire fixed at both ends. External physical forces—such as stress or pressure—alter the tension in the wire, thereby changing its natural vibration frequency. An electronic excitation circuit induces the wire to resonate, and by measuring the resonance frequency, the corresponding physical quantity can be calculated based on the relationship between frequency and tension.
In brief:
· The excitation circuit causes the wire to vibrate.
· The sensor detects the wire's resonance frequency.
· Frequency changes are converted into strain, pressure, or displacement outputs.
III. Classification of Vibrating Wire Transducers
Although vibrating wire sensors specifically measure resonance frequency changes of a vibrating string, the broader category of vibration sensors includes several types based on different principles:
· Eddy Current Vibration Sensors: These non-contact sensors operate based on eddy current effects. They measure vibration parameters by detecting changes in the distance between the sensor tip and the object. They are mainly used for vibration displacement measurements.
· Inductive Vibration Sensors: Based on electromagnetic induction, these sensors have magnets and magnetic conductors. They convert mechanical vibration parameters into electrical signals and can measure vibration velocity, acceleration, and more.
· Capacitive Vibration Sensors: These sensors detect vibration by measuring changes in capacitance caused by variations in gap distance or overlapping area. They include variable-gap types for linear displacement and variable-area types for angular displacement measurement in torsional vibrations.
· Piezoelectric Vibration Sensors: Utilizing the piezoelectric effect of crystals, these sensors generate electrical charges proportional to applied mechanical vibrations. They include piezoelectric accelerometers, force sensors, and impedance heads.
· Strain Gauge Vibration Sensors: These sensors measure mechanical vibrations through changes in electrical resistance. They often use strain gauge elements to convert vibration into measurable electrical resistance changes.
IV. Features and Advantages
· High Stability and Accuracy: Frequency signals have minimal error, ideal for precise mechanical measurements.
· Strong Electromagnetic Immunity: Frequency-based output naturally resists noise, suitable for harsh industrial environments.
· Excellent Long-Term Stability: Metal vibrating wires resist fatigue, perfect for continuous monitoring.
· Long Signal Transmission Distance: Frequency signals suffer negligible attenuation over hundreds or even thousands of meters.
· Digital Interface Friendly: Easily integrates with modern wireless acquisition systems and IoT platforms.

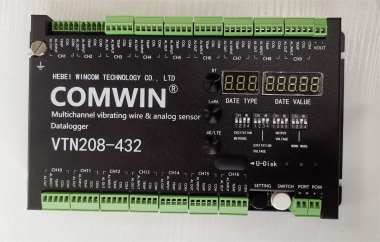

V. Common Issues with Wireless Vibrating Wire Data Acquisition Systems
As wireless technology becomes widespread, vibrating wire sensors paired with wireless data loggers are widely deployed, but users often face these problems:
1. Device Won't Power On
· Verify correct power supply connection (DC 10–24V, ≥2A output).
· Check correct polarity; reversed battery polarity can cause permanent damage.
· If battery-powered, measure battery voltage with power button held down.
· Check/replace button cell batteries if used.
2. Communication Failure
· Confirm correct digital interface and connection (RS232 or RS485).
· Check wiring order.
· Test communication at different baud rates.
3. Automatic Mode Not Working
· Try manual startup; verify correct date/time. Replace internal button battery if inaccurate.
· Check auto mode timer register settings and units.
4. Frequency Reads Zero
· Inspect sensor wiring for disconnection, short circuit, or open circuit.
· Measure sensor resistance (typically 100–2000 Ω).
· Confirm correct excitation method (some sensors require specific excitation).
5. Unstable Frequency Readings
· Shorten cable length or use shielded cables with lower resistance.
· Ensure device chassis and power negative terminal are properly grounded.
· Use linear power supplies or batteries; disconnect any AC-related circuits.
· Disconnect all other sensors and loads to isolate interference.
· Check for strong electromagnetic interference sources nearby (e.g., motors, power distribution panels).
6. Failure to Send Data via Mobile Network
· Check SIM card balance and signal strength.
· Confirm SMS or GPRS service is active and supported.
· Use third-party tools to verify server address and port accessibility.
7. Cross-Interference Between Vibrating Wire Channels
· Modify register 20 to 1 to enable “slow measurement” mode, which reduces cross-channel interference at the cost of longer measurement times.
VI. Conclusion
Vibrating wire transducers, with their unique frequency-based output, remain core sensors in the electronic components industry for monitoring applications. Coupled with wireless acquisition technology, their potential continues to expand. Understanding sensor types and common wireless data acquisition faults can greatly improve system stability and monitoring accuracy. Looking forward, vibrating wire sensors will advance toward greater intelligence, multifunctionality, and remote operation, driving upgrades in industrial IoT and smart monitoring technologies.
