What Are DC Fuses?

The significance of DC fuses in the electronic components industry continues to grow, especially with the rapid development of electric vehicles, solar photovoltaic systems, and energy storage solutions. As the demand for DC circuit protection increases, this article will provide a detailed overview of DC fuses, including their definition, working principle, key features and advantages, as well as their main applications.

Catalog

I. What Are DC Fuses?

II. Working Principle

III. Characteristics and Advantages

IV. Applications

V. Conclusion

I. What Are DC Fuses?

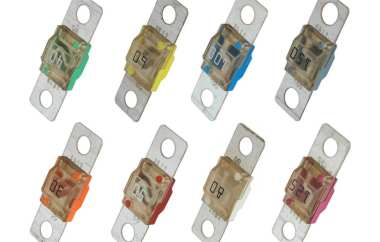

A DC fuse is an electrical safety device designed to protect direct current (DC) circuits from overcurrent and short-circuit conditions. Its basic structure consists of a metal conductor that melts when the current exceeds a specified rating, thereby interrupting the circuit and preventing damage to equipment or potential fire hazards.

II. Working Principle

The operating principle of a DC fuse is based on the heat generated by electrical current flowing through the conductor. When the current surpasses the fuse’s rated capacity, the conductor heats up to its melting point and breaks the circuit. Unlike alternating current (AC), DC lacks a natural zero-crossing point, which makes interrupting DC circuits more challenging. Therefore, DC fuses require higher breaking capacity and faster response times to effectively protect the system.

III. Characteristics and Advantages

· High Breaking Capacity: DC fuses are designed to safely interrupt potentially high fault currents.

· Fast Response: They quickly disconnect the circuit to prevent prolonged exposure to overcurrent that could damage devices.

· High-Temperature Resistance: Capable of stable operation in high-temperature environments, suitable for diverse applications.

· Compact Design: As electronic devices become smaller, DC fuses are evolving toward more compact and efficient designs.

IV. Applications

· Electric Vehicles (EVs): Protection for battery management systems, charging systems, and electric motor drives.

· Renewable Energy Systems: Protecting inverters, battery packs, and battery management systems in solar photovoltaic, wind power, and energy storage setups.

· Industrial Automation: Circuit protection in robots, automated production lines, and high-voltage DC systems.

· Data Centers and Telecommunications: Safeguarding high-efficiency power supply systems to ensure stable device operation.

V. Conclusion

As a critical component of circuit protection, DC fuses play an indispensable role in modern electronic and power systems. With ongoing technological advancements and expanding application fields, the market prospects for DC fuses remain highly promising.
