What Are Cylindrical Fuses?
As modern electronics and power systems continue to evolve with higher integration levels and increasing operating voltages, overcurrent protection has become more critical than ever. Cylindrical fuses—among the most common and reliable protective components—are widely used across industrial automation, power systems, new energy, consumer electronics, and automotive electrical applications. Thanks to their simple structure, fast response, and easy replaceability, cylindrical fuses remain a fundamental safeguard in these diverse environments. This article provides a comprehensive overview of their definition, working principles, classifications, technical specifications, and applications.
Catalog
I. What Are Cylindrical Fuses?
III. Main Types of Cylindrical Fuses
IV. Key Technical Specifications
I. What Are Cylindrical Fuses?

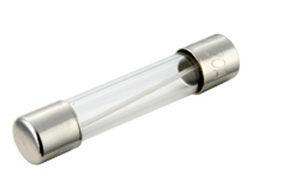

A cylindrical fuse is a circuit protection device that encases a fusible element within a cylindrical body. The fusible element, typically made of materials like copper or silver alloy, is enclosed in a glass, ceramic, or composite housing. Metal end caps on both sides allow the fuse to be installed into a circuit. When an abnormal current—such as from a short circuit or overload—flows through the circuit, the fuse melts quickly and interrupts the current flow, protecting downstream components from damage.
Key Features:
· Standardized packaging for easy replacement
· High mechanical strength and excellent arc resistance
· Available in fast-acting or time-delay variants
· Compliant with international safety standards (e.g., IEC, UL, VDE, CCC)
II. Working Principle
Cylindrical fuses operate based on the Joule heating effect (Q = I²RT). As current flows through the fuse element, it generates heat. When the current exceeds the fuse’s rated capacity, the heat accumulates rapidly, causing the element to melt and disconnect the circuit.
During this process, arc suppression is critical. The fuse’s glass or ceramic housing helps absorb or suppress the arc to prevent secondary damage. High-quality fuses are often filled with sand to absorb the thermal energy and extinguish the arc effectively during the breaking process.
III. Main Types of Cylindrical Fuses
Cylindrical fuses can be categorized based on response time, structural design, and application needs:
1. By Response Time:
· Fast-acting (F, FF): Breaks circuit quickly; ideal for sensitive electronics or short circuit protection.
· Medium-speed (M): Suitable for circuits that tolerate short-duration overloads.
· Time-delay (T, TT): Withstands inrush currents; commonly used in motor startup, transformers, and power supplies.
2. By Construction:
· Glass Tube: Offers visual inspection of fuse status; best for low-voltage applications.
· Ceramic Tube: High voltage and heat resistance; suitable for industrial or high-power environments.
· HRC (High Rupturing Capacity): Withstands high fault currents without explosion; used in industrial power systems.
3. By Application or Design:
· Dual-element Fuses: Incorporate two fuse elements for both overload and short-circuit protection.
· Rejection-type Fuses: Physically incompatible with incorrect holders to prevent misapplication.
· MELF (Cylindrical SMD): Designed for precision applications on SMT boards in compact circuits.
IV. Key Technical Specifications
· Rated Current (In) & Rated Voltage (Un): Indicates the maximum continuous current and voltage the fuse can handle safely.
· Breaking Capacity: The maximum fault current the fuse can interrupt safely. HRC fuses can handle tens of thousands to over a million amperes.
· I²t Value: Measures the thermal energy during the fuse operation; critical for evaluating thermal stress on protected devices.
· Temperature Derating Factor: Environmental temperature can affect fuse performance; proper derating is necessary in extreme conditions.
· Time–Current Characteristics: Defines the fuse’s response time under various overcurrent levels, essential for selecting the right fuse for overload tolerance.
V. Applications
· Consumer Electronics: Used in power adapters, chargers, displays, often with glass or ceramic slow-blow fuses for safety.
· Industrial Automation: Employed in PLCs, inverters, UPS systems using ceramic or HRC fuses for high thermal and voltage resilience.
· Motors and Start-Up Loads: Time-delay fuses (T/TT) prevent nuisance blowing from inrush currents.
· Electric Vehicles & Energy Storage Systems: Require high voltage and high breaking capacity fuses to ensure safety and performance.
· Renewable Energy & Smart Grids: Cylindrical fuses are tailored for solar, wind, and smart grid applications with intelligent high-voltage designs.
VI. Conclusion
Though small in size, cylindrical fuses play a vital role in safeguarding electronic systems. With proper selection and deployment, they significantly enhance system reliability and stability. As high-voltage, high-frequency, and intelligent devices continue to grow in adoption, cylindrical fuses will remain indispensable within the global electronics component ecosystem.
