What Are HRC Fuses?
In the electronic components and power industry, circuit protection is a critical aspect to ensure the safety of equipment and the stable operation of systems. High Rupturing Capacity fuses (HRC fuses) are essential overcurrent protection devices known for their superior performance and reliability. They are widely used across industrial control, power distribution, transportation, and other fields. This article provides an in-depth overview of HRC fuses, including their definition, operating principle, features and advantages, as well as common applications.
Catalog
I. What Are HRC Fuses?

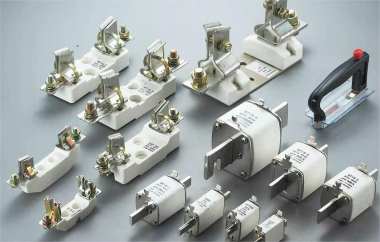

HRC fuses are designed with a high breaking capacity to quickly interrupt current in the event of a short circuit or overload, preventing equipment damage and potential fire hazards. Internally, they are filled with specialized insulating material such as quartz sand. The fuse element melts when overloaded, and the arc formed is rapidly extinguished by the insulating filler, ensuring safe and effective current interruption. Compared to traditional fuses, HRC fuses can withstand much higher short-circuit currents and offer faster disconnection.
II. Work Principles
At the core of an HRC fuse is its fuse element. When the current exceeds its rated value, the heat generated causes the element to melt. During this melting process, metal vapor is released, which reacts with the insulating powder inside the fuse, quickly creating a high-resistance barrier that effectively extinguishes the arc and guarantees a complete circuit break. Thanks to the enclosed ceramic casing and high-quality insulating materials, HRC fuses can safely interrupt high short-circuit currents without causing secondary damage from the arc.
III. Features and Advantages
· High Breaking Capacity: Capable of safely interrupting short-circuit currents up to 200,000 amperes, suitable for high-current environments.
· Fast Response: Quickly melts in abnormal current situations, protecting equipment from damage.
· Compact Design: More efficient design results in a smaller size compared to traditional fuses, ideal for installations with limited space.
· Reliable Performance: Precise melting characteristics ensure dependable protection for equipment.
· Maintenance-Free: Once the fuse has operated, it simply requires replacement without additional maintenance.
IV. Applications
HRC fuses are widely used in various sectors, including:
· Industrial Control Circuits: Protecting motor control centers, switchgear, and control panels from overcurrent and short circuits.
· Power Distribution Systems: Safeguarding transformers, feeders, and other critical components from high fault currents.
· Renewable Energy Systems: Providing protection for inverters, converters, and sensitive components in solar and wind power installations.
· Transportation: Used in railways, electric vehicles, and aerospace industries to protect sensitive electronics and power equipment from electrical faults.
V. Conclusion
As a high-performance electrical protection device, the HRC fuse plays an indispensable role in modern industrial and power systems with its excellent breaking capacity and fast response characteristics. Proper selection and application of HRC fuses not only ensure the safety of equipment and personnel but also enhance system stability and reliability. With the continuous advancement of power systems and electronic devices, the technology and application of HRC fuses will keep evolving, cementing their position as a fundamental safeguard for contemporary electrical systems.
