GA355QR7GF222KW01L: Features, Specs & More
In today's fast-evolving electronics landscape, selecting the right components is crucial for performance and safety. One such vital component is the Murata GA355QR7GF222KW01L, a ceramic suppression capacitor designed to improve electromagnetic compatibility and ensure device reliability. In this comprehensive article, we'll delve into the intricacies of the GA355QR7GF222KW01L, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
GA355QR7GF222KW01L's Manufacturer
GA355QR7GF222KW01L's Overview

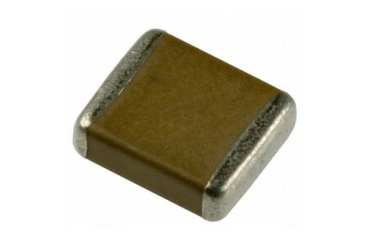

The Murata GA355QR7GF222KW01L is a surface-mount ceramic suppression capacitor. It is specifically engineered to suppress electromagnetic interference (EMI) in electronic circuits. This capacitor is classified under the X1/Y2/Y2 suppression class, making it suitable for line-to-line and line-to-ground interference filtering in AC mains applications.
Key Features
Let's delve into the standout features that make the GA355QR7GF222KW01L a standout in the world of electronics:
· The capacitance value is 0.0022 microfarads (uF).
· It has a tolerance of ±10%, providing reliable precision.
· Rated voltage is 250VAC, suitable for standard power applications.
· Utilizes an X7R dielectric material, ensuring stable performance over temperature.
· Constructed with a flat ceramic chip design for optimal mounting.
· Surface mount technology (SMT) compatible, enabling efficient PCB assembly.
· Features a pad termination style with two terminals.
· Designed to operate within a temperature range of -55°C to 125°C.
· Packaged in tape and reel format for automated manufacturing.
· The case size is 2220 (5.7mm x 5mm x 1.5mm), fitting compact spaces.
· Dissipation factor is 2.5%, which supports efficient energy handling.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the GA355QR7GF222KW01L:
Type | Parameter |
Capacitance Value | 0.0022uF |
Tolerance | 10% |
Voltage | 250VAC |
Dielectric | X7R |
Technology | Standard |
Microwave Application | No |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Pad |
Number of Terminals | 2 |
Case Style | Ceramic Chip |
Suppression Class | Y2|X1/Y2 |
Dissipation Factor (%) | 2.5 |
Size (mm) | 5.7 X 5 X 1.5 |
Package/Case | 2220 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Product Length (mm) | 5.7 |
Product Depth (mm) | 5 |
Product Height (mm) | 1.5 |
Product Weight (g) | 0.22001 |
Length Tolerance (mm) | ±0.4 |
Depth Tolerance (mm) | ±0.4 |
Height Tolerance (mm) | -0.3 |
* GA355QR7GF222KW01L's Datasheet
Applications
The Murata GA355QR7GF222KW01L capacitor is widely used in:
· Power supply EMI filtering to reduce noise interference.
· Industrial machinery and automation equipment requiring stable operation.
· Consumer electronics like televisions and home appliances to meet EMC standards.
· Lighting systems to suppress transient noise.
· Medical devices needing reliable electromagnetic interference protection.
GA355QR7GF222KW01L's Manufacturer
Founded in 1944, Murata Manufacturing Co., Ltd is a Japanese manufacturer of electronic components, based in Nagaokakyo, Kyoto. It produces ceramic passive electronic components, primarily capacitors, and has a majority marketshare worldwide in ceramic filters, high-frequency parts, and sensors.
Conclusion
The Murata GA355QR7GF222KW01L is a highly specialized ceramic suppression capacitor that plays a crucial role in reducing electromagnetic interference in AC-powered devices. Its precise specifications, durable construction, and versatile applications make it an indispensable component for engineers and designers focused on high-quality, compliant electronics.
