BC847CW,115: Features, Specs & More
In the world of electronics, selecting the right transistor is crucial for efficient circuit design and performance. The Nexperia BC847CW,115 stands out as a versatile NPN bipolar junction transistor (BJT) designed for small signal applications. In this comprehensive article, we'll delve into the intricacies of the BC847CW,115, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
BC847CW,115's Overview

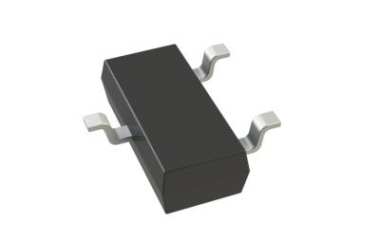

The BC847CW,115 is an NPN bipolar small signal transistor manufactured by Nexperia. It is designed as a single-element transistor optimized for switching and amplification tasks in compact electronic circuits. With a high current gain and robust voltage ratings, it fits seamlessly into automotive-grade and general-purpose electronic devices.
Key Features
Let's delve into the standout features that make the BC847CW,115 a standout in the world of electronics:
· It supports a maximum collector-emitter voltage of 45 volts.
· The transistor has a maximum collector current rating of 0.1 amps.
· It delivers a power dissipation capacity of up to 200 milliwatts.
· The device operates efficiently within a temperature range from -65°C to 150°C.
· It offers a minimum DC current gain of 420 at 2mA and 5V conditions.
· The typical base-emitter saturation voltage is 0.7 volts at low currents.
· It comes in a compact SC-70 surface-mount package with gull-wing leads.
· The transistor features a maximum collector cut-off current of 15 nanoamps, minimizing leakage.
· It has a low collector-emitter saturation voltage of 0.2 volts at 0.5mA current.
· The packaging is tape and reel, suitable for automated assembly lines.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the BC847CW,115:
Type | Parameter |
Type | NPN |
Product Category | Bipolar Small Signal |
Configuration | Single |
Number of Elements per Chip | 1 |
Maximum Collector Base Voltage (V) | 50 |
Maximum Collector-Emitter Voltage (V) | 45 |
Maximum Emitter Base Voltage (V) | 6 |
Operating Junction Temperature (°C) | 150 |
Maximum Base Emitter Saturation Voltage (V) | 0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA |
Maximum Collector-Emitter Saturation Voltage (V) | 0.2@0.5mA@10mA|0.4@5mA@100mA |
Maximum DC Collector Current (A) | 0.1 |
Maximum Collector Cut-Off Current (nA) | 15 |
Minimum DC Current Gain | 420@2mA@5V |
Maximum Power Dissipation (mW) | 200 |
Minimum Operating Temperature (°C) | -65 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Supplier Temperature Grade | Automotive |
Mounting | Surface Mount |
Package Height | 1(Max) mm |
Package Width | 1.35(Max) mm |
Package Length | 2.2(Max) mm |
PCB changed | 3 |
Standard Package Name | SOT |
Supplier Package | SC-70 |
Pin Count | 3 |
Lead Shape | Gull-wing |
Applications
The BC847CW,115 is widely used in electronics for:
· General-purpose switching in automotive circuits.
· Signal amplification in audio and communication devices.
· Interface circuits requiring reliable small signal transistors.
· Low-power amplifiers in consumer electronics.
· Driver stages for sensors and actuators.
BC847CW,115's Manufacturer
Nexperia, a leading force in the electronic components industry, stands as a testament to innovation and expertise. Born out of NXP Semiconductors in 2017, Nexperia swiftly emerged as an independent company, building on a legacy of over 60 years of semiconductor excellence. With a rich history rooted in technological advancements, Nexperia has established itself as a global powerhouse, specializing in the design and manufacturing of essential electronic components. Renowned for its commitment to quality, reliability, and cutting-edge solutions, Nexperia continues to shape the future of electronics, providing components that drive advancements in various industries, from automotive to consumer electronics.
Conclusion
The Nexperia BC847CW,115 transistor is an excellent choice for engineers and designers who need a reliable, high-performance NPN transistor for small signal applications. Its robust electrical parameters, automotive-grade temperature range, and compact packaging make it suitable for a wide array of electronic designs.
