MT40A1G8SA-062E:R: Features, Specs & More
In the fast-paced world of electronics, reliable and high-performance memory components are crucial. The Micron MT40A1G8SA-062E:R stands out as a robust DDR4 SDRAM chip designed to meet the demanding needs of modern computing devices. With an 8Gbit capacity and a clock rate of up to 3200MHz, this chip ensures efficient data handling and high-speed access. In this comprehensive article, we'll delve into the intricacies of the MT40A1G8SA-062E:R, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MT40A1G8SA-062E:R's Manufacturer
MT40A1G8SA-062E:R's Overview

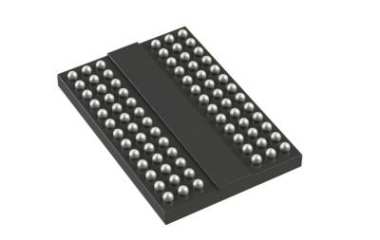

The Micron MT40A1G8SA-062E:R is a DDR4 synchronous dynamic random-access memory (SDRAM) chip. It offers a density of 8Gbits and is organized as 1Gx8. The chip uses a 78-pin FBGA package and operates on a typical voltage of 1.2V. It is designed for surface mounting on printed circuit boards (PCBs), making it suitable for compact and high-performance electronics systems.
Key Features
Let's delve into the standout features that make the MT40A1G8SA-062E:R a standout in the world of electronics:
· It is a DDR4 SDRAM type memory chip.
· The chip density is 8 gigabits.
· The organization format is 1Gx8.
· It contains 16 internal memory banks.
· Each bank has 64 million words.
· The data bus width is 8 bits.
· The maximum clock rate reaches 3200 MHz.
· The maximum access time is 0.16 nanoseconds.
· The address bus width is 18 bits.
· It uses CMOS process technology.
· It operates typically at 1.2 volts supply voltage.
· The operating temperature range is from 0°C to 95°C.
· The package type is 78-pin FBGA, suitable for tray packaging.
· The chip is designed for commercial temperature grade applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MT40A1G8SA-062E:R:
Type | Parameter |
DRAM Type | DDR4 SDRAM |
Chip Density (bit) | 8G |
Organization | 1Gx8 |
Number of Internal Banks | 16 |
Number of Words per Bank | 64M |
Number of Bits/Word (bit) | 8 |
Data Bus Width (bit) | 8 |
Maximum Clock Rate (MHz) | 3200 |
Maximum Access Time (ns) | 0.16 |
Address Bus Width (bit) | 18 |
Process Technology | CMOS |
Minimum Operating Supply Voltage (V) | 1.14 |
Typical Operating Supply Voltage (V) | 1.2 |
Maximum Operating Supply Voltage (V) | 1.26 |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 95 |
Supplier Temperature Grade | Commercial |
Number of I/O Lines (bit) | 8 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 0.92 |
Package Width | 7.5 |
Package Length | 11 |
PCB changed | 78 |
Standard Package Name | BGA |
Supplier Package | FBGA |
Pin Count | 78 |
* MT40A1G8SA-062E:R's Datasheet
Applications
The Micron MT40A1G8SA-062E:R is ideal for a wide range of applications including:
· High-performance computing devices such as laptops and desktops.
· Networking equipment requiring fast data buffering.
· Industrial control systems that demand reliability in harsh environments.
· Embedded systems used in automotive electronics.
· Consumer electronics that need efficient memory modules.
MT40A1G8SA-062E:R's Manufacturer
Micron Technology is a global leader in semiconductor manufacturing, specializing in memory and storage solutions. Founded in Boise, Idaho, in 1978, Micron has grown to become one of the largest and most influential players in the technology industry. The company is renowned for its innovation in NAND and DRAM memory technologies, providing a wide range of products that power computing, networking, and storage applications. With a commitment to advancing technology and driving industry breakthroughs, Micron has established itself as a key player in the development of cutting-edge memory solutions for various electronic devices and systems.
Conclusion
The Micron MT40A1G8SA-062E:R DDR4 SDRAM chip offers a powerful combination of speed, capacity, and reliability. Its 3200MHz maximum clock rate and 8Gbit density make it a competitive choice for a variety of applications. Engineers and designers looking for dependable, high-performance memory should consider this chip for their next project. With Micron's expertise backing it, the MT40A1G8SA-062E:R is poised to enhance the performance of electronic systems worldwide.
