GRM155R71C104JA88D: Features, Specs & More
In the fast-paced world of modern electronics, component size and performance matter more than ever. If you're designing compact circuits and need a dependable capacitor with excellent thermal stability and a small footprint, the muRata GRM155R71C104JA88D might be exactly what you're looking for. In this comprehensive article, we'll delve into the intricacies of the GRM155R71C104JA88D, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
GRM155R71C104JA88D's Manufacturer
GRM155R71C104JA88D's Overview

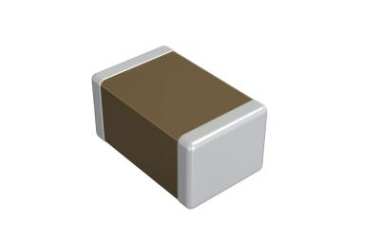

The GRM155R71C104JA88D is a multilayer ceramic capacitor (MLCC) produced by Murata Manufacturing Co., Ltd., one of the leading global suppliers of electronic components. With a capacitance of 0.1μF (100nF), a rated voltage of 16V, and X7R dielectric, this surface-mount device is designed for high-density circuits that demand stability, reliability, and size efficiency.
Key Features
Let's delve into the standout features that make the GRM155R71C104JA88D a standout in the world of electronics:
· The capacitance value is 0.1 microfarads.
· It supports a rated voltage of 16 volts DC.
· The dielectric material used is X7R.
· The tolerance is fixed at ±5%.
· The mounting style is surface-mount technology (SMT).
· The package size is 0402 (1.0 mm × 0.5 mm).
· It features a flat construction for improved placement.
· Operating temperature ranges from -55°C to +125°C.
· It is packaged in tape and reel for automated assembly.
· The component weighs only 0.0016 grams.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the GRM155R71C104JA88D:
Type | Parameter |
Capacitance Value | 0.1uF |
Tolerance | 5% |
Voltage | 16VDC |
Dielectric | X7R |
Technology | Standard |
Microwave Application | No |
Special Features | Large Capacity|Small Size |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Pad |
Number of Terminals | 2 |
Case Style | Ceramic Chip |
Size (mm) | 1 X 0.5 X 0.5 |
Package/Case | 0402 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Product Length (mm) | 1 |
Product Depth (mm) | 0.5 |
Product Height (mm) | 0.5 |
Product Weight (g) | 0.0016 |
Length Tolerance (mm) | ±0.05 |
Depth Tolerance (mm) | ±0.05 |
Height Tolerance (mm) | ±0.05 |
* GRM155R71C104JA88D's Datasheet
Applications
Thanks to its compact size and strong performance, the GRM155R71C104JA88D is commonly used in:
· Smartphones and wearable devices
· Automotive ECUs and infotainment systems
· Industrial control modules
· Power supplies and voltage regulators
· Medical diagnostic equipment
· IoT and edge computing devices
GRM155R71C104JA88D's Manufacturer
Founded in 1944, Murata Manufacturing Co., Ltd is a Japanese manufacturer of electronic components, based in Nagaokakyo, Kyoto. It produces ceramic passive electronic components, primarily capacitors, and has a majority marketshare worldwide in ceramic filters, high-frequency parts, and sensors.
Conclusion
The muRata GRM155R71C104JA88D 0.1µF 16V X7R capacitor delivers exactly what today's electronics require: compactness, durability, and thermal stability. Its 0402 footprint makes it perfect for high-density PCBs, and its X7R dielectric ensures consistent performance across a broad temperature range.
