AD9215BCPZ-65: Features, Specs & More
When precision and speed meet affordability, the ADI AD9215BCPZ-65 stands out as a robust analog-to-digital converter (ADC) designed for demanding industrial and scientific applications. In this comprehensive article, we'll delve into the intricacies of the AD9215BCPZ-65, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AD9215BCPZ-65's Overview

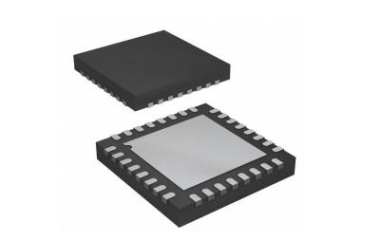

The AD9215BCPZ-65 is a single-channel, 10-bit pipelined ADC manufactured by Analog Devices Inc. It operates at a sampling rate of 65 million samples per second (Msps) and features a parallel digital interface. Engineered for general-purpose applications, this ADC converts analog voltage signals into digital data efficiently and accurately. Its small 32-pin LFCSP package with an exposed pad supports surface-mount technology, making it suitable for compact, high-density circuit designs.
Key Features
Let's delve into the standout features that make the AD9215BCPZ-65 a standout in the world of electronics:
· Converts analog signals with 10-bit resolution for detailed data capture.
· Utilizes a pipelined architecture for fast and efficient conversion processes.
· Supports sampling rates up to 65Msps to handle rapid signal changes.
· Offers a parallel digital interface for straightforward connection to digital systems.
· Compatible with both differential and single-ended input voltage signals.
· Allows the use of internal or external voltage reference for flexible design.
· Supports unipolar input voltage polarity to simplify signal conditioning.
· Operates with a single voltage supply for design simplicity.
· Maintains low power consumption at approximately 96mW.
· Ensures signal integrity with a typical signal-to-noise ratio of 59dB.
· Provides error margins including ±1.2LSB integral nonlinearity and 4% full-scale error.
· Designed for industrial environments with an operating temperature range from -40°C to +85°C.
· Packaged in a compact 5mm x 5mm chip-scale package (CSP) for space-efficient mounting.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AD9215BCPZ-65:
Type | Parameter |
Converter Type | General Purpose |
Architecture | Pipelined |
Resolution | 10bit |
Number of ADCs | 1 |
Number of Input Channels | 1 |
Sampling Rate | 65Msps |
Digital Interface Type | Parallel |
Input Type | Voltage |
Input Signal Type | Differential|Single-Ended |
Voltage Reference | External|Internal |
Polarity of Input Voltage | Unipolar |
Voltage Supply Source | Single |
Input Voltage | 1Vp-p/2Vp-p |
Typical Power Dissipation (mW) | 96 |
Integral Nonlinearity Error | ±1.2LSB |
Full Scale Error | 4%FSR |
Signal to Noise Ratio | 59dB(Typ) |
No Missing Codes (bit) | 10 |
Sample and Hold | Yes |
Single-Ended Input | Yes |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tray |
Supplier Temperature Grade | Industrial |
Mounting | Surface Mount |
Package Height | 0.73 |
Package Width | 5 |
Package Length | 5 |
PCB changed | 32 |
Standard Package Name | CSP |
Supplier Package | LFCSP EP |
Pin Count | 32 |
Lead Shape | No Lead |
Applications
The versatility of the AD9215BCPZ-65 makes it ideal for a variety of fields:
· Ultrasound imaging devices requiring precise and fast analog-to-digital conversion.
· Intermediate Frequency (IF) sampling in communication receivers for accurate signal processing.
· Battery-powered instruments that benefit from low power consumption and high efficiency.
· Hand-held scopemeters and test equipment that demand compact size and reliability.
· Cost-effective digital oscilloscopes for education and field diagnostics.
AD9215BCPZ-65's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
For engineers and designers seeking a reliable, efficient, and compact ADC, the AD9215BCPZ-65 offers a balanced combination of performance and versatility. Its pipelined 10-bit architecture, high sampling rate, and robust industrial temperature rating make it a go-to choice for demanding applications.
