PIC18F25Q10-I/ML: Features, Specs & More
In the world of embedded systems, the Microchip PIC18F25Q10-I/ML stands out as a reliable and feature-rich 8-bit microcontroller designed for industrial-grade applications. With high processing speed, robust analog integration, and a flexible voltage range, this microcontroller is widely used in automotive, consumer electronics, industrial automation, and IoT edge devices. In this comprehensive article, we'll delve into the intricacies of the PIC18F25Q10-I/ML, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PIC18F25Q10-I/ML's Manufacturer
PIC18F25Q10-I/ML's Overview
The PIC18F25Q10-I/ML is an 8-bit microcontroller based on a Reduced Instruction Set Computing (RISC) architecture. It belongs to the popular PIC18 family by Microchip Technology. Featuring 32KB of Flash memory and a rich set of integrated peripherals, it is engineered for optimal performance in power-sensitive and real-time control applications.
Key Features
Let's delve into the standout features that make the PIC18F25Q10-I/ML a standout in the world of electronics:
· Operates at a maximum clock speed of 64 MHz
· Supports Flash program memory of 32KB for reliable storage
· Provides 2KB of RAM for efficient data processing
· Works over wide supply voltages: 2.5V, 3.3V, and 5V
· Equipped with I2C, SPI, and USART for communication
· Includes 24-channel, 10-bit ADC for precision analog sensing
· Offers a 5-bit DAC for simple digital-to-analog conversion
· Contains 25 general-purpose I/O pins
· Built with 7 timers for real-time control tasks
· Features 2 PWM modules for motor and LED control
· Operates within industrial temperature range: -40°C to +85°C

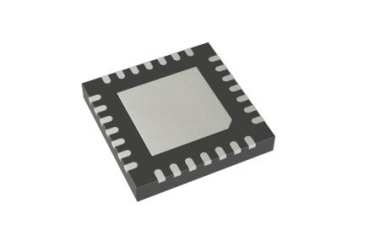

· Comes in a compact 28-pin QFN package with excellent thermal performance
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PIC18F25Q10-I/ML:
Type | Parameter |
Family Name | PIC18 |
Instruction Set Architecture | RISC |
Device Core | PIC |
Core Architecture | PIC |
Maximum CPU Frequency (MHz) | 64 |
Maximum Clock Rate (MHz) | 64 |
Data Bus Width (bit) | 8 |
Program Memory Type | Flash |
Program Memory Size | 32KB |
RAM Size | 2KB |
Programmability | Yes |
Interface Type | I2C/SPI/USART |
Number of I/Os | 25 |
No. of Timers | 7 |
PWM | 2 |
Number of ADCs | 1 |
ADC Channels | 24 |
ADC Resolution (bit) | 10 |
Number of DACs | 1 |
DAC Channels | 1 |
DAC Resolution (bit) | 5 |
USART | 1 |
UART | 0 |
USB | 0 |
SPI | 1 |
I2C | 1 |
I2S | 0 |
CAN | 0 |
Ethernet | 0 |
Watchdog | 1 |
Analog Comparators | 2 |
Parallel Master Port | No |
Real Time Clock | No |
Minimum Operating Supply Voltage (V) | 1.8 |
Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Power Dissipation (mW) | 800 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 0.88 |
Package Width | 6 |
Package Length | 6 |
PCB changed | 28 |
Standard Package Name | QFN |
Supplier Package | QFN EP |
Pin Count | 28 |
Lead Shape | No Lead |
* PIC18F25Q10-I/ML's Datasheet
Applications
Thanks to its compact form factor, rich analog features, and versatile communication interfaces, the PIC18F25Q10-I/ML is ideal for:
· Industrial control systems
· Home automation devices
· Sensor-based applications
· Embedded instrumentation
· Motor control and monitoring
· Power management units
· Low-power consumer electronics
PIC18F25Q10-I/ML's Manufacturer
Micron Technology is a global leader in semiconductor manufacturing, specializing in memory and storage solutions. Founded in Boise, Idaho, in 1978, Micron has grown to become one of the largest and most influential players in the technology industry. The company is renowned for its innovation in NAND and DRAM memory technologies, providing a wide range of products that power computing, networking, and storage applications. With a commitment to advancing technology and driving industry breakthroughs, Micron has established itself as a key player in the development of cutting-edge memory solutions for various electronic devices and systems.
Conclusion
The PIC18F25Q10-I/ML is a versatile, robust 8-bit microcontroller that balances power efficiency, performance, and interface versatility. Its industrial-grade specifications make it an excellent choice for embedded designers looking for a reliable MCU with ample memory, precise ADC capabilities, and flexible communication options.
