MC14504BDR2G: Features, Specs & More
In modern electronics, efficient signal compatibility between devices is crucial. Whether you're designing mixed-voltage circuits or integrating legacy TTL with CMOS logic, level shifters make this possible. One standout component in this field is the onsemi MC14504BDR2G—a reliable 6-channel CMOS voltage level shifter that ensures seamless voltage translation. In this comprehensive article, we'll delve into the intricacies of the MC14504BDR2G, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MC14504BDR2G's Overview
The onsemi MC14504BDR2G is a CMOS/TTL to CMOS voltage level shifter. It is designed to convert logic voltage levels across devices, specifically translating input signals from CMOS or TTL levels to higher CMOS-compatible outputs. With six unidirectional channels, it is suited for applications requiring multiple level conversions in a compact form factor.
Key Features
Let's delve into the standout features that make the MC14504BDR2G a standout in the world of electronics:
· Belongs to the established 4000 logic family known for stability and reliability.
· Supports CMOS/TTL to CMOS translation, ensuring broad compatibility.
· Features six unidirectional channels, ideal for parallel signal processing.
· Incorporates push-pull outputs for stronger drive capabilities.
· Operates on a wide voltage range from 3V to 18V, accommodating various systems.
· Functions efficiently within temperatures of -55°C to 125°C, suitable for harsh environments.

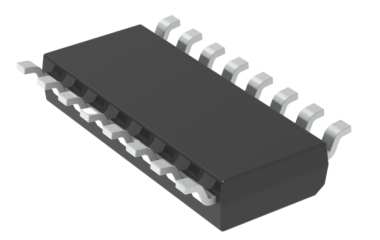

· Designed for surface mount with a compact 16-pin SOIC package for space-saving PCB designs.
· Supplied in Tape and Reel packaging, perfect for automated manufacturing processes.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MC14504BDR2G:
Type | Parameter |
Logic Family | 4000 |
Logic Function | Voltage Level Shifter |
Translation | CMOS/TTL to CMOS |
Channel Type | Unidirectional |
Number of Channels | 6 |
Maximum Propagation Delay Time @ Maximum CL (ns) | 550@5V@15V |
Absolute Propagation Delay Time (ns) | 550 |
Process Technology | CMOS |
Output Type | Push-Pull |
Maximum Low Level Output Current (mA) | 4.2(Min) |
Maximum High Level Output Current (mA) | -4.2(Min) |
Minimum Operating Supply Voltage (V) | 3 |
Typical Operating Supply Voltage (V) | 3.3|5|9|12|15 |
Maximum Operating Supply Voltage (V) | 18 |
Maximum Quiescent Current (mA) | 5 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) mm |
Package Width | 4(Max) mm |
Package Length | 10(Max) mm |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The MC14504BDR2G is versatile and commonly used in:
· Mixed-voltage logic interfacing between older TTL devices and modern CMOS logic circuits.
· Industrial automation where robust level shifting is needed under varying temperatures.
· Consumer electronics that integrate components operating at different voltage levels.
· Data communication systems ensuring signal integrity across voltage domains.
· Embedded systems that require precise voltage matching for microcontrollers and peripherals.
MC14504BDR2G's Manufacturer
ON Semiconductor, stylized in lowercase as "onsemi", stands at the forefront of technological innovation, driving advancements that power intelligent and energy-efficient systems worldwide. With a commitment to delivering cutting-edge solutions, ON Semiconductor provides a comprehensive portfolio of semiconductor products, spanning power management, analog, sensor, and connectivity solutions. Leveraging a legacy of over 20 years, the company has solidified its position as a trusted partner for industries ranging from automotive and industrial to consumer electronics and healthcare.
Conclusion
The onsemi MC14504BDR2G stands out as a high-performance, 6-channel CMOS voltage level shifter with wide voltage support, robust temperature resilience, and industrial-grade reliability. Whether you’re developing consumer devices or industrial systems, this component provides the essential bridge between different voltage logic levels with efficiency and consistency.
