JMK212AB7106KG-T: Features, Specs & More
When it comes to reliable and efficient electronic components, capacitors play a critical role in circuit performance. The Taiyo Yuden JMK212AB7106KG-T is a high-quality ceramic capacitor widely used in surface mount technology (SMT) applications. In this comprehensive article, we'll delve into the intricacies of the JMK212AB7106KG-T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
JMK212AB7106KG-T's Manufacturer
JMK212AB7106KG-T's Overview

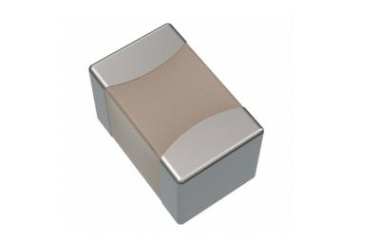

The JMK212AB7106KG-T is a surface-mount ceramic capacitor manufactured by Taiyo Yuden. It belongs to the X7R dielectric class and provides a capacitance value of 10 microfarads (uF) with a voltage rating of 6.3 volts DC. This capacitor is designed for use in standard electronic circuits, offering stability over a wide temperature range and excellent reliability.
Key Features
Let's delve into the standout features that make the JMK212AB7106KG-T a standout in the world of electronics:
· The capacitance value is 10uF, ideal for decoupling and filtering.
· Voltage rating is 6.3VDC, suitable for low-voltage applications.
· X7R dielectric provides stable capacitance within -55°C to +125°C.
· 10% tolerance ensures precise performance for sensitive circuits.
· Constructed as a flat ceramic chip with surface-mount technology (SMT).
· Compact 0805 package size (2.0 x 1.25 x 1.25 mm) saves PCB space.
· Features a pad termination style with two terminals for secure mounting.
· Packaged in tape and reel format, ready for automated assembly lines.
· Rated for operation in temperatures from -55°C up to 125°C.
· Standard technology offers cost-effective performance in mass production.
· Non-microwave application design suits general electronics needs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the JMK212AB7106KG-T:
Type | Parameter |
Capacitance Value | 10uF |
Tolerance | 10% |
Voltage | 6.3VDC |
Dielectric | X7R |
Technology | Standard |
Microwave Application | No |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Pad |
Number of Terminals | 2 |
Case Style | Ceramic Chip |
Size (mm) | 2 X 1.25 X 1.25 |
Package/Case | 0805 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Product Length (mm) | 2 |
Product Depth (mm) | 1.25 |
Product Height (mm) | 1.25 |
* JMK212AB7106KG-T's Datasheet
Applications
The JMK212AB7106KG-T capacitor finds widespread use in the following areas:
· Power supply decoupling in smartphones and portable devices.
· Noise filtering in consumer electronics like tablets and wearables.
· Signal smoothing in automotive electronic control units (ECUs).
· Circuit stabilization in IoT devices and embedded systems.
· General purpose applications in communication equipment.
· Compact and space-constrained PCB designs where reliability is key.
JMK212AB7106KG-T's Manufacturer
TAIYO YUDEN, established in 1950, has been engaged in research, development and production of capacitors, inductors, circuit modules, and SAW/FBAR devices under the philosophy that the process of product commercialization should start with material development. TAIYO YUDEN's extensive range of products demonstrates world-leading support of development and progress in the information technology and electronics industries. In addition, TAIYO YUDEN is proactively pursuing and expanding business activities into energy-related fields as well as strengthening their position in existing applications such as smartphones, PCs and TVs.
Conclusion
The Taiyo Yuden JMK212AB7106KG-T is a reliable, compact, and stable ceramic capacitor well-suited for a broad spectrum of electronic applications. Its combination of 10uF capacitance, 6.3V rating, and X7R dielectric makes it a go-to choice for engineers aiming for efficient noise filtering and power stabilization in tight spaces.
