IP5306CX8,135: Features, Specs & More
When it comes to audio filtering and signal conditioning in modern electronics, the choice of components plays a crucial role in overall system performance. The Freescale Semiconductor (now NXP Semiconductors) IP5306CX8,135 is a compact, highly reliable RC low pass filter designed for precise audio applications. In this comprehensive article, we'll delve into the intricacies of the IP5306CX8,135, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
IP5306CX8,135's Overview
The IP5306CX8,135 is a 2nd order RC low pass filter manufactured by NXP Semiconductors, formerly Freescale Semiconductor. It is designed to filter audio signals by removing unwanted high-frequency noise and interference. This filter uses an RC (Pi) technology and comes with integrated ESD (Electrostatic Discharge) protection, making it a robust and compact solution for sensitive audio circuits.
Key Features
Let's delve into the standout features that make the IP5306CX8,135 a standout in the world of electronics:
· The IP5306CX8,135 is a 2nd order low pass filter optimized for audio frequency filtering.
· It uses RC (Pi) filter technology, which provides effective noise attenuation.
· The device features two separate channels, allowing versatile dual-path filtering.
· Each channel has a resistance of 2.2 kΩ, ensuring consistent signal attenuation.
· The capacitor value paired with resistance is 1700 pF, tailored for precise cutoff behavior.
· It offers built-in ESD protection, safeguarding circuits from electrostatic damage.
· Designed for surface mount technology (SMT), it fits easily on compact PCBs.

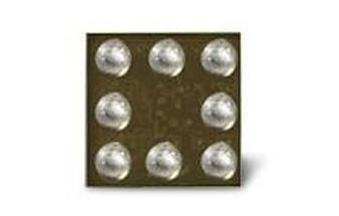

· The filter comes in an 8-UFBGA or WLCSP package, making it ideal for miniaturized designs.
· It is highly compact, measuring only 1.20mm x 1.20mm in length and width.
· The height of the component is 0.60mm, suitable for slim device profiles.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the IP5306CX8,135:
Type | Parameter |
Type | Low Pass |
Filter Order | 2nd |
Technology | RC (Pi) |
Number of Channels | 2 |
Center / Cutoff Frequency | - |
Attenuation Value | - |
Resistance - Channel (Ohms) | 2.2k |
Values | R = 2.2kOhms, C = 1700pF |
ESD Protection | Yes |
Operating Temperature | - |
Applications | Audio |
Voltage - Rated | - |
Mounting Type | Surface Mount |
Package / Case | 8-UFBGA, WLCSP |
Size / Dimension | 0.047" L x 0.047" W (1.20mm x 1.20mm) |
Height | 0.024" (0.60mm) |
Applications
The IP5306CX8,135 is widely used in electronics where clean audio signals are critical. Typical applications include:
· Smartphones and mobile devices where audio clarity is vital.
· Portable audio equipment such as headphones and speakers.
· Microphone input circuits to eliminate high-frequency noise.
· Signal conditioning in consumer electronics requiring stable, noise-free sound.
· Wearable technology that demands compact, low-profile components.
IP5306CX8,135's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The IP5306CX8,135 by Freescale (NXP Semiconductors) is an excellent choice for engineers looking for a compact, reliable, and efficient low pass filter for audio applications. Its robust ESD protection, dual-channel configuration, and small package size make it ideal for modern, space-constrained electronic designs. Whether you are developing smartphones, audio devices, or wearables, the IP5306CX8,135 offers precision filtering to enhance sound quality and device performance.
