MAX3160EAP+: Features, Specs & More
In the world of robust industrial communication, the Analog Devices, Inc. (ADI) MAX3160EAP+ stands out as a reliable single transmitter/receiver transceiver. Designed to support multiple interface standards including RS-232, RS-422, and RS-485, this device ensures seamless data transmission up to 10Mbps. In this comprehensive article, we'll delve into the intricacies of the MAX3160EAP+, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MAX3160EAP+'s Overview

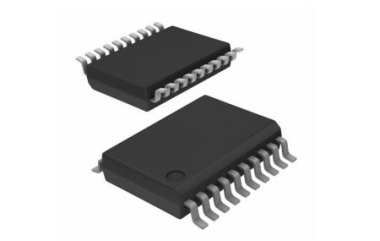

The MAX3160EAP+ is a BiCMOS-based line transceiver integrating a single transmitter and receiver capable of handling multiple serial communication standards: RS-232, RS-422, and RS-485. This device supports both single-ended and differential signaling modes, ensuring compatibility across various data transmission environments. Its compact 20-pin SSOP packaging facilitates surface mount assembly, making it a popular choice for modern embedded systems and industrial equipment.
Key Features
Let's delve into the standout features that make the MAX3160EAP+ a standout in the world of electronics:
· The MAX3160EAP+ supports data transmission rates up to 10Mbps for high-speed communication needs.
· It integrates a single transmitter and receiver supporting RS-232, RS-422, and RS-485 protocols.
· This device accommodates both point-to-point and multidrop communication topologies.
· Transmitter signals can be either single-ended or differential, offering flexible design options.
· Receiver inputs also support single-ended and differential signaling for robust data detection.
· It operates from a single supply voltage ranging between 3V and 5.5V, simplifying power management.
· The device is built using BiCMOS technology, enhancing performance and reliability.
· It has a maximum supply current of 5.5mA, optimizing power efficiency in embedded systems.
· The MAX3160EAP+ functions reliably in industrial temperature ranges from -40°C to 85°C.
· Features 3-state driving mode and transmitter enable functionality for improved bus management.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MAX3160EAP+:
Type | Parameter |
Function | Line Transceiver |
Data Rate | 10Mbps |
Transmitter Communication Type | RS-232|RS-422|RS-485 |
Receiver Communication Type | RS-232|RS-422|RS-485 |
Interface Standards | EIA/TIA-232|EIA/TIA-485|RS-232|RS-422|RS-485 |
Data Transmission Topology | Point-to-Point|Multidrop |
Number of Transceivers | 1 |
Number of Transmitters | 1@RS-422|1@RS-485|2@RS-232 |
Number of Receivers | 1@RS-422|1@RS-485|2@RS-232 |
Transmitter Signal Type | Single-Ended|Differential |
Receiver Signal Type | Single-Ended|Differential |
Process Technology | BiCMOS |
Number of Drivers per Line | 1@RS-232|1@RS-422|256@RS-485 |
Number of Receivers per Line | 1@RS-232|10@RS-422|256@RS-485 |
Driving Mode | 3-State |
Number of Transmitter Enables | 1 |
Number of Receiver Enables | 0 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Power Supply Type | Single |
Minimum Single Supply Voltage (V) | 3 |
Typical Single Supply Voltage (V) | 3.3|5 |
Maximum Single Supply Voltage (V) | 5.5 |
Maximum Supply Current (mA) | 5.5 |
Supplier Temperature Grade | Industrial |
Isolation | No |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 1.78(Max) |
Package Width | 5.38(Max) |
Package Length | 7.33(Max) |
PCB changed | 20 |
Standard Package Name | SO |
Supplier Package | SSOP |
Pin Count | 20 |
Lead Shape | Gull-wing |
Applications
· Industrial automation systems requiring robust serial communication.
· Data acquisition devices transmitting sensor data in harsh environments.
· Embedded control units interfacing with legacy RS-232, RS-422, or RS-485 devices.
· Multidrop communication networks for building automation and monitoring.
· Medical instruments demanding reliable high-speed serial data links.
· Telecommunications equipment using differential signaling protocols.
· Point-to-point serial communication links in factory floor controllers.
MAX3160EAP+'s Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The MAX3160EAP+ from Analog Devices is a powerful and flexible line transceiver optimized for RS-232, RS-422, and RS-485 communication standards. Its high data rate support, broad operating temperature range, and versatile signaling make it a top choice for engineers designing industrial and embedded serial communication systems. By integrating a single transmitter and receiver in a compact SSOP package, it simplifies design and enhances system reliability. Whether your project requires point-to-point or multidrop topologies, the MAX3160EAP+ offers proven performance that meets industrial-grade requirements.
