What is a Photoelectric Thyristor?

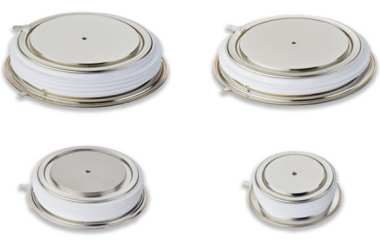

In the heart of ultra-high-voltage transmission lines, a semiconductor device quietly operates, controlling tens of thousands of kilowatts of electrical power using only light. It doesn't require complex circuit connections and isn't affected by electromagnetic interference. A simple beam of infrared light can open the gate for current—this is the Light Triggered Thyristor, or LTT. As a revolutionary innovation in power electronics, it perfectly combines the precision control of light with the power-handling capabilities of semiconductors. This article explores the definition, working principle, features and advantages, and applications of photoelectric thyristors.
Catalog
I. What is a Photoelectric Thyristor?
I. What is a Photoelectric Thyristor?
A photoelectric thyristor is a semiconductor switching device that is controlled using the photoelectric effect. Its basic structure includes a light-sensitive region, a control electrode, and main electrodes. When the light-sensitive region is exposed to light of a specific wavelength, it generates photo-induced carriers that trigger the thyristor into conduction. Unlike conventional thyristors, the trigger signal comes from light rather than an electrical current or voltage. This allows for electrical isolation and non-contact control.
II. Work Principles
The operation of a photoelectric thyristor is based on the photoelectric effect. When light of a specific wavelength shines on the light-sensitive region, photons generate electron-hole pairs, changing the conductivity of that region. By controlling the intensity and wavelength of the light, the conduction and shutdown of the thyristor can be precisely adjusted, allowing accurate control of current. Compared with traditional electrically triggered thyristors, photoelectric thyristors offer higher resistance to interference and a longer operational lifespan.
III. Features and Advantages
Compared to traditional electrically triggered thyristors, light-triggered technology brings multiple breakthroughs:
· Enhanced insulation capability: Fiber-optic triggering achieves kilovolt-level insulation, completely isolating the control system from the main circuit. This is particularly valuable in ultra-high-voltage applications.
· Improved system reliability: By eliminating gate drive boards and isolation components, potential points of failure are reduced. The ±800kV UHV project in China uses 5-inch light-triggered thyristors precisely for their high reliability.
· Integrated protection functions: Modern LTTs integrate overvoltage protection (BoD) and dv/dt protection directly on the chip. Infineon’s LTT Prime series even adds forward recovery protection (FRP), using periodic light pulses to prevent false triggering caused by voltage transients.
These characteristics make LTTs indispensable in complex electromagnetic environments and extreme operating conditions.
IV. Applications
Photoelectric thyristors are widely used across several fields:
· Power electronics: They are used for current switching in high-voltage direct current (HVDC) transmission systems.
· Automation control: In industrial automation, they serve as switching elements in motor drives, temperature control, and power management.
· Communication equipment: In fiber-optic communication systems, they help modulate and demodulate signals to ensure stable transmission.
· Medical devices: They are applied in medical imaging and diagnostic equipment for high-precision signal processing and control.
· Rail transit: In railway power systems, they manage power conversion and control, ensuring stable operation.
V. Conclusion
Light-triggered thyristors, with their non-contact optical triggering, have carved out a unique role in high-voltage power control. They cleverly replace conventional electrical signals with light signals, fully isolating the main circuit from the control system. This fundamentally eliminates the threat of electromagnetic interference and significantly improves safety and reliability in high-voltage environments. The technology continues to evolve, moving toward higher power density, stronger integrated protection, and smarter status monitoring. In the future, as the global energy internet develops and demand for efficient, reliable power transmission grows, light-triggered thyristors will remain a core switching element in high-voltage power electronic systems, quietly ensuring that massive amounts of electricity flow safely, stably, and efficiently.
