What Are Rotary Switches?
Inside countless electronic devices, rotary switches act like quiet conductors, changing circuit connections through the rotation of contacts to enable function switching or parameter adjustment. From selecting bands on old radios to precise controls on modern industrial machinery, rotary switches can be found everywhere. Thanks to their reliable tactile feedback and clear detent positions, they still hold a solid place in the digital era. This article will provide a comprehensive overview of rotary switches, covering their definition, working principle, features and advantages, applications, and more.
Catalog
I. What Are Rotary Switches?

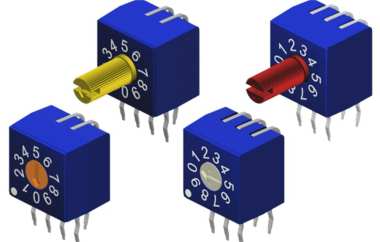

Rotary switches are a type of electromechanical switch that use a rotating shaft to drive an internal contact mechanism, changing the electrical connection paths. The main components include a rotating shaft, contacts, a detent mechanism, and a housing. When a user turns the shaft, the contacts move and connect with fixed terminals in different combinations, enabling circuit switching. Based on internal design, rotary switches can be classified into mechanical contact types and non-contact types.
Mechanical contact switches, such as Nidec Copal's SMR series, use gold-plated contacts and a ratchet detent mechanism to achieve conduction through physical contact. Their contact resistance is typically below 100 mΩ, and they can withstand up to 10,000 operations. Non-contact switches, like those from Würth Elektronik, use Hall sensors to detect the rotation angle of a magnet and a microcontroller to calculate position. This design eliminates mechanical wear entirely, greatly extending service life.
II. Working Principle
The working principle of a rotary switch is based on the interaction between mechanical movement and electrical contact. When the user turns the knob, the shaft drives the contacts to move, connecting or disconnecting specific circuits and thereby switching between them. Rotary switches can come in different configurations, including single-pole single-throw (SPST), single-pole multi-throw (SPMT), and multi-pole multi-throw (MPMT), to meet various application requirements.
III. Features and Advantages
· Space Efficiency: Ultra-thin designs make rotary switches ideal for modern electronics. For example, the NKK FD series measures just 7.2 mm² with a height of 3.1 mm, supporting high-density PCB mounting. The Nidec SMR series uses a 7.5 mm square package with gull-wing terminals for side-by-side installation.
· Environmental Resistance: The NKK NR01 series features a glass-fiber reinforced polyester housing and fully sealed structure, protecting against dust and moisture, and even supporting post-solder cleaning. Zhejiang Shengtuo's rotary self-lock switches use a rotation-trigger mechanism to prevent accidental activation and improve safety.
· Electrical Performance: Many models have a contact resistance of ≤100 mΩ and insulation resistance over 1 GΩ. The FD series is rated for 250 VAC, ensuring safe high-voltage isolation.
· Durability and Cost Efficiency: Mechanical switches typically guarantee 10,000 operations, while non-contact solutions achieve multiple times longer life since there is no wear. SR2 anti-block switches can last over five years, reducing overall costs by approximately 30% compared to radar level meters.
IV. Applications
Rotary switches are widely used in multiple industries due to their sturdy construction, ease of operation, and high reliability:
· Industrial Control Systems: For selecting machine operating modes, start/stop control, and speed adjustment.
· Home Appliances: Such as washing machines, microwaves, and ovens for function selection.
· Audio Equipment: For volume control, input source switching, and mode selection.
· Communication Devices: For frequency selection, mode switching, and signal adjustment.
· Vehicles and Instrument Panels: For dashboard and control panel function selection.
V. Conclusion
As a key component in the electronics industry, rotary switches maintain broad applications thanks to their reliability, multifunctionality, and intuitive operation. Looking ahead, non-contact technologies are likely to dominate the high-end market. Würth Elektronik's magnetic encoding solutions show strong potential—switch logic can be adjusted via software updates without hardware changes, significantly reducing iteration costs. When integrated with IoT capabilities, rotation data can be synced to the cloud in real-time, supporting predictive maintenance.
Whether adjusting volume or safeguarding an industrial production line, rotary switches quietly get the job done. The next time you turn a knob, consider how these ingenious mechanical designs and cutting-edge electronic technologies are subtly transforming the way humans interact with machines.
