TLV7211IDBVR: Features, Specs & More
The TI TLV7211IDBVR is a high-performance micropower comparator designed for precision electronics. It offers a single-channel configuration with rail-to-rail input, delivering excellent flexibility in low-voltage circuits. In this comprehensive article, we'll delve into the intricacies of the TLV7211IDBVR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TLV7211IDBVR's Overview
The TLV7211IDBVR is a micropower comparator. It has a single channel per chip. It features rail-to-rail input, allowing full voltage range operation. This component is designed for single supply voltage operation from 2.7V to 15V. It supports both low-power and fast-response applications in compact circuits.
Key Features
Let's delve into the standout features that make the TLV7211IDBVR a standout in the world of electronics:
· The device provides typical CMRR of 75 dB, ensuring accurate differential signal comparison.
· It offers typical PSRR of 80 dB, maintaining stable performance under varying supply voltages.
· The comparator has a typical response time of 4 µs, making it suitable for fast signal detection.
· It supports a maximum propagation delay time of 10,000 ns, ideal for timing-sensitive circuits.
· The output type is push-pull, allowing flexible driving of external loads.
· It operates at a maximum supply voltage of 15 V and a minimum of 2.7 V, providing broad voltage compatibility.
· The input offset voltage is 15 mV at 5V, ensuring precision in signal comparison.
· Typical voltage gain ranges from 90 to 110 dB, delivering strong amplification performance.
· It features ultra-low input bias current of 40 nA, minimizing power consumption.
· The device supports typical output current of 30 mA, making it suitable for driving various circuit loads.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TLV7211IDBVR:
Type | Parameter |
Manufacturer Type | Micropower Comparator |
Number of Channels per Chip | 1 |
Rail to Rail | Rail to Rail Input |
Typical CMRR (dB) | 75 |
Typical PSRR (dB) | 80 |
Typical Response Time (us) | 4 |
Typical Response Time Range (us) | 0.5 to 5 |
Maximum Propagation Delay Time (ns) | 10000(Typ) |
Output Type | Push-Pull |
Maximum Operating Supply Voltage (V) | 15 |
Maximum Input Offset Voltage (mV) | 15@5V |
Minimum Single Supply Voltage (V) | 2.7 |
Maximum Single Supply Voltage (V) | 15 |
Typical Voltage Gain (dB) | 100 |
Typical Voltage Gain Range (dB) | 90 to 110 |
Maximum Input Bias Current (uA) | 0.00000004(Typ)@5V |
Maximum Supply Current (mA) | 0.014@5V |
Typical Output Current (mA) | 30(Max) |
Maximum Test Temperature (°C) | 85 |
Minimum Test Temperature (°C) | -40 |
Power Supply Type | Single |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.1 |
Package Width | 1.75(Max) |
Package Length | 3.05(Max) |
PCB changed | 5 |
Standard Package Name | SOT |

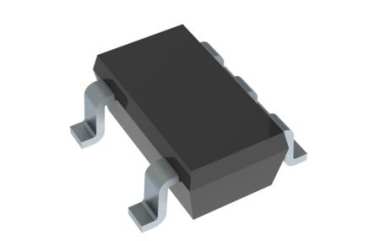

Supplier Package | SOT-23 |
Pin Count | 5 |
Lead Shape | Gull-wing |
Applications
The TLV7211IDBVR is suitable for a wide range of applications:
· Low-voltage analog signal detection in portable devices.
· High-precision sensor interfacing circuits.
· Fast-response signal comparison in automotive electronics.
· General-purpose industrial control circuits.
· Battery-powered electronics requiring ultra-low current consumption.
TLV7211IDBVR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TLV7211IDBVR is a reliable, high-performance micropower comparator with rail-to-rail input and ultra-low power consumption. Its compact SOT-23 package, wide voltage range, and fast response make it perfect for portable, automotive, and industrial electronics. Choosing the TLV7211IDBVR ensures precision, efficiency, and long-term reliability in modern electronic designs.
