How to Choose the Right TVS Diode?
In electronic circuit design, transient voltage suppression (TVS) diodes are essential protective components. They are widely used in applications that are sensitive to voltage spikes, such as electronic instruments, medical devices, industrial automation systems, computers, and communication equipment. With their extremely fast response times, precise clamping voltage capabilities, and a variety of package options, TVS diodes are often the go-to choice for engineers designing circuit protection. However, with so many models and specifications available, choosing the right TVS diode can be tricky. Among all the parameters, peak pulse power is often seen as a key factor—but is it really enough to pick the best device? This article breaks down what TVS diodes are, their key specifications, common misconceptions, and tips for making a smarter selection.
Catalog
II. Key Parameters for Selecting a TVS Diode
III. Is Higher Peak Pulse Power Always Better?
I. What Is a TVS Diode?

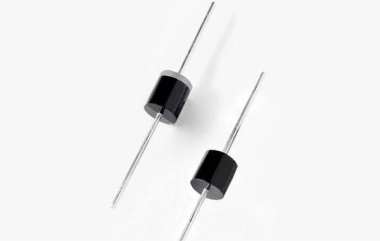

A TVS diode (Transient Voltage Suppressor) is a semiconductor device designed to protect circuits from transient overvoltages. It works based on the principle of reverse breakdown, responding in a fraction of a second—usually from picoseconds to nanoseconds—to voltage spikes. When triggered, it clamps the voltage to a safe level and absorbs large transient currents, preventing damage to downstream components. TVS diodes come in two main types: unidirectional for DC circuits and bidirectional for AC circuits.
II. Key Parameters for Selecting a TVS Diode
Selecting the right TVS diode requires considering multiple electrical specifications to ensure it can protect the circuit effectively without interfering with normal operation. Key parameters include:
· Breakdown Voltage (VBR): The voltage at which the TVS begins to conduct under a specified test current. Ideally, VBR should be slightly higher than the maximum normal operating voltage of the circuit.
· Clamping Voltage (VC): The voltage across the TVS when the transient current reaches its rated peak pulse current (IPP). VC must be lower than the maximum voltage the protected device can tolerate.
· Peak Pulse Current (IPP): The maximum instantaneous current the TVS can handle, reflecting its ability to absorb surge energy.
· Peak Pulse Power (PPPM): Determined by VC and IPP (PPPM = VC × IPP), representing the maximum instantaneous power the TVS can dissipate.
· Leakage Current (IR): The reverse current that flows through the TVS at its rated working voltage; lower values are better to minimize power loss.
· Response Time: Usually extremely short, which is one reason TVS diodes often outperform other protection components, like MOVs.
III. Is Higher Peak Pulse Power Always Better?
Many engineers tend to select TVS diodes with higher peak pulse power, assuming this automatically means better protection. In reality, this is a common misconception.
Peak pulse power only indicates the device's own instantaneous power handling capacity—it doesn't directly determine protection effectiveness. The clamping voltage (VC) is what truly affects protection performance. For example, under the same test conditions and IPP, different TVS models can have different VC values. A lower VC might result in a lower calculated PPPM, but it does not mean weaker protection. In fact, a lower clamping voltage can more effectively limit the voltage across the protected device, providing more reliable protection.
Therefore, when selecting a TVS diode, engineers should first ensure that the clamping voltage is below the maximum voltage tolerance of the circuit, then choose a model with sufficient peak pulse power for the expected transient energy.
IV. Other Considerations
Beyond electrical parameters, the following factors should also be considered:
· Package Type and Size: Choose according to PCB space and thermal requirements (e.g., SMA, SMB, SMC surface-mount packages, or through-hole options).
· Operating Temperature: Ensure the TVS functions properly within the temperature range of the device.
· Standards Compliance: Check whether it meets relevant industry standards, such as ISO 7637-2 or IEC 61000-4-2/4/5, for ESD and surge immunity.
· Reliability and Lifespan: Ensure performance remains stable even after repeated transient events.
V. Conclusion
Choosing the right TVS diode requires considering multiple factors. Peak pulse power is important but not the only metric. Clamping voltage, response speed, packaging, standards compliance, and real-world operating conditions all play a crucial role. Engineers should combine datasheet specifications with real application scenarios and, if possible, verify with testing to provide the best protection for the circuit.
With careful selection, TVS diodes can significantly enhance the reliability and lifespan of electronic devices, reducing the risk of failures caused by voltage transients. They remain an indispensable component in modern electronic system design.
