PH9185.012NLT: Features, Specs & More
When it comes to reliable, high-performance power transformers for modern electronics, the Pulse Electronics PH9185.012NLT stands out as a top choice. Engineered for efficiency, durability, and surface mount compatibility, this transformer is ideal for a wide range of applications. In this comprehensive article, we'll delve into the intricacies of the PH9185.012NLT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PH9185.012NLT's Overview

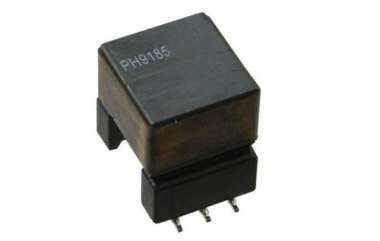

The PH9185.012NLT is a 1CT:2CT push-pull transformer manufactured by Pulse Electronics. It is specifically designed to provide dual primary and secondary windings, allowing flexible configurations in power supply circuits. The transformer operates safely at a high potential of 5000Vrms, making it suitable for demanding industrial and commercial applications. Its surface-mount gull-wing terminals simplify PCB integration while maintaining electrical reliability.
Key Features
Let's delve into the standout features that make the PH9185.012NLT a standout in the world of electronics:
· The PH9185.012NLT is a push-pull transformer for high-efficiency power transfer.
· It features a 1CT:2CT turns ratio for dual-output requirements.
· The transformer has a dual primary configuration for flexible input voltage handling.
· It also includes a dual secondary configuration for versatile circuit design.
· The primary side has an inductance of 450 µH to maintain energy storage and stability.
· Maximum DCR of the primary side is 0.4 Ohm to minimize power loss.
· Maximum DCR of the secondary side is 0.8 Ohm for efficient output delivery.
· It supports a high potential of 5000Vrms, ensuring strong isolation.
· The transformer comes with gull-wing terminals for surface-mount assembly.
· It is designed for surface-mount mounting, making it compatible with automated production lines.
· The device operates reliably in temperatures from -40°C to 125°C.
· The PH9185.012NLT is available in tape and reel packaging for efficient handling.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PH9185.012NLT:
Type | Parameter |
Transformer Type | Push Pull Transformer |
Turns Ratio | 1CT:2CT |
Primary Configuration | Dual |
Secondary Configuration | Dual |
Primary Side Inductance (uH) | 450 |
Maximum DCR Primary Side (Ohm) | 0.4 |
Maximum DCR Secondary Side (Ohm) | 0.8 |
High Potential | 5000Vrms |
Lead Style | Gull Wing |
Mounting | Surface Mount |
Number of Terminals | 6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Package Type | SMD |
Packaging | Tape and Reel |
Product Length (mm) | 10 |
Product Height (mm) | 12.5 |
Product Depth (mm) | 13 |
Applications
The PH9185.012NLT transformer is widely used in electronics that demand compact, high-isolation solutions. Typical applications include:
· DC-DC converters for industrial electronics.
· Power supply units in telecommunication equipment.
· Audio and signal isolation circuits.
· High-efficiency energy conversion devices.
· Embedded systems requiring small form-factor transformers.
PH9185.012NLT's Manufacturer
Pulse Electronics, a Yageo company, provides a wide range of Pulse connectors and other solutions for the electronic component market. As a leader in Connectors, Antennas and Passives, Pulse allows electronic industry professionals to build and design modern, high-performing solutions for applications like communications, wireless, network, automotive, power and more.
Conclusion
The Pulse Electronics PH9185.012NLT push-pull transformer offers compact size, high isolation, and reliable surface-mount integration. With its dual primary and secondary configuration, low DCR, and wide temperature range, it is ideal for modern electronics requiring efficient and stable power conversion. Designers looking for a high-performance SMD transformer will find the PH9185.012NLT an excellent choice for industrial, telecom, and embedded applications.
