TDSO3160-KL: Features, Specs & More
The Vishay Semiconductor TDSO3160-KL is an advanced display module that combines high performance with reliability, designed for a wide range of applications. This 1-digit 8-LED orange-red display is a part of Vishay's extensive lineup of optoelectronic solutions. It is specifically engineered for use in consumer electronics, industrial applications, and instrumentation where clear and bright numerical displays are essential. In this comprehensive article, we'll delve into the intricacies of the TDSO3160-KL, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TDSO3160-KL's Overview

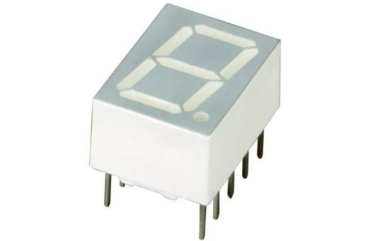

The TDSO3160-KL is a 1-digit, 8-LED segmented display module. It features orange-red LEDs that provide excellent visibility with high brightness. The display operates within a common cathode configuration, allowing for ease of integration into digital circuits. This display is part of Vishay's Opto Division, known for providing high-quality semiconductor solutions for various electronic devices.
Key Features
Let's delve into the standout features that make the TDSO3160-KL a standout in the world of electronics:
· The module features a single digit display with 8 LEDs, ideal for displaying numeric data.
· It provides a vibrant Orange Red color, which is highly visible even in low light conditions.
· The digit size measures 0.4 inches, offering clear visibility for users.
· With an intensity of 5600 μcd, the display is bright and legible.
· The maximum dominant wavelength of 625 nm ensures that the display emits the correct color and visibility.
· This configuration makes the module easier to integrate into many electronic systems.
· It can function optimally from -40°C to 85°C, making it reliable for various environments.
· The module has a maximum power dissipation of 480 mW, ensuring efficient energy consumption.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TDSO3160-KL:
Type | Parameter |
Type | Module |
Number of Digits | 1 |
Color | Orange Red |
Number of LEDs | 8 |
Digit Size (in) | 0.4 |
Character Displayed | Numeric |
Intensity (ucd) | 5600(Max) |
Dominant Wavelength (nm) | 625(Max) |
Peak Wavelength (nm) | 630 |
Configuration | Common Cathode |
Maximum Forward Current (mA) | 20 |
Test Current (mA) | 20 |
Maximum Reverse Voltage (V) | 15(Typ) |
Maximum Forward Voltage (V) | 3 |
Maximum Power Dissipation (mW) | 480 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Mounting | Through Hole |
Package Height | 7 |
Package Width | 9.45 |
Package Length | 12.6 |
PCB changed | 10 |
Standard Package Name | DIP |
Supplier Package | DIP Module |
Pin Count | 10 |
Applications
The TDSO3160-KL is versatile, finding its applications in various electronic devices that require clear numeric display. It is commonly used in:
· Digital Clocks: For displaying time in consumer electronics.
· Meters: Used in devices like voltage meters and thermometers to display measurements.
· Digital Indicators: In devices such as calculators, scoreboards, and counters.
· Industrial Equipment: Integrated in machines and instruments that need to show numerical data.
Its wide operating temperature range makes it suitable for both indoor and outdoor applications, where durability and performance are essential.
TDSO3160-KL's Manufacturer
Founded in 1962, Vishay Semiconductor is a global leader in electronic components and semiconductors. With a rich history spanning over six decades, the company has consistently pushed the boundaries of innovation, establishing itself as a trusted name in the electronics industry. Vishay Semiconductor is renowned for its commitment to quality, precision, and reliability in manufacturing a wide range of components, including resistors, capacitors, diodes, and MOSFETs. Vishay Opto is one of the largest suppliers of optical sensors, optocouplers, and LEDs to Tier1 and OEM automotive manufacturers.
Conclusion
The Vishay Semiconductor TDSO3160-KL display module stands out for its excellent brightness, energy efficiency, and broad application potential. Its compact size, paired with its high-intensity LEDs and wide temperature tolerance, makes it a reliable choice for many industries. Whether you're designing simple digital displays or need a robust solution for more complex systems, the TDSO3160-KL offers the performance and versatility you need. By choosing Vishay, you are assured of a high-quality, long-lasting product backed by a trusted name in the electronics industry.
