G2RL14DC24: Features, Specs & More
If you're working in electronics or industrial automation, understanding reliable power relays is crucial. The Omron G2RL-14DC24 is a compact, high-performance 24VDC power relay that offers dependable switching for a variety of applications. In this comprehensive article, we'll delve into the intricacies of the G2RL14DC24, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
G2RL14DC24's Overview

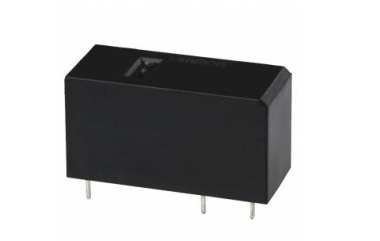

The Omron G2RL-14DC24 is a Single Pole Double Throw (SPDT) power relay. It operates with a 24V DC coil voltage and can switch up to 12A current. This relay is designed for through-hole mounting and features a non-latching relay construction. It is widely used in industrial equipment, home appliances, and automation systems.
Key Features
Let's delve into the standout features that make the G2RL14DC24 a standout in the world of electronics:
· The Omron G2RL-14DC24 has a single pole double throw (SPDT) contact arrangement.
· It supports 1 Form C contact form for flexible circuit configurations.
· The relay coil operates at 24VDC with 16.7mA current.
· Its coil resistance is 1.44K ohms ensuring efficient operation.
· It provides insulation resistance of 1000 MOhm for safety.
· The maximum contact resistance is 100 mOhm for reliable conduction.
· It has a maximum AC switching voltage of 440V and DC switching voltage of 300V.
· The relay can handle a maximum switching current of 12A.
· Its operate time is 15ms while the release time is 5ms.
· The electrical life spans 50,000 operations.
· The mechanical life reaches 20 million operations for long-term reliability.
· It features non-latching construction for repeated switching tasks.
· The relay has five PC pin terminals for stable connections.
· It can operate in temperatures ranging from -40°C to 85°C.
· The compact design weighs 12 grams for lightweight applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the G2RL14DC24:
Type | Parameter |
Contact Arrangement | SPDT |
Contact Form | 1 Form C |
DC Coil Voltage (V) | 24 |
Coil Current (mA) | 16.7 |
Coil Resistance (Ohm) | 1.44K |
Insulation Resistance (MOhm) | 1000 |
Maximum Contact Resistance (mOhm) | 100 |
Maximum Pick-Up Voltage | 16.8VDC |
Minimum Dropout Voltage | 2.4VDC |
Maximum AC Switching Voltage (V) | 440 |
Maximum DC Switching Voltage (V) | 300 |
Maximum Switching Current (A) | 12 |
Operate Time (ms) | 15 |
Release Time (ms) | 5 |
Electrical Life (Operations) | 50000 |
Mechanical Life (Operations) | 20000000 |
LED Indicator | No |
Push to Test Button | No |
Coil Suppression Diode | No |
Relay Construction | Non-Latching |
Mounting | Through Hole |
Termination Style | PC Pin |
Number of Terminals | 5 |
Maximum Terminal Width (mm) | 0.8 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Product Weight (g) | 12 |
Product Length (mm) | 29 |
Product Depth (mm) | 12.7 |
Product Height (mm) | 15.7 |
Applications
The Omron G2RL-14DC24 is ideal for a variety of electronics and industrial applications. It can be used in:
· Industrial automation systems for switching heavy loads.
· Power supply control circuits for precise voltage regulation.
· Home appliances requiring reliable on/off switching.
· Automotive electronics where compact and robust relays are essential.
· HVAC and lighting systems for controlling multiple circuits.
· PLC and control panel applications for enhanced operational safety.
G2RL14DC24's Manufacturer
Omron is one of the world's leading suppliers of advanced, reliable electronic controls and systems. You can count on them to provide you with the latest technology and to provide you with superior quality and performance in every product area we participate in. From relays to advanced machine visions system, nobody offers a better performance value than Omron. they also offer global service and sales support from more than 1,500 offices worldwide.
Conclusion
The Omron G2RL-14DC24 power relay is a compact, reliable, and versatile component for electronics projects and industrial applications. Its high switching capacity, long life, and SPDT configuration make it a preferred choice for engineers. Whether you are designing automation systems, appliances, or control panels, this relay delivers consistent performance and safety.
