TPS43060RTER: Features, Specs & More
When it comes to designing compact yet powerful power systems, Texas Instruments' TPS43060RTER stands out as an advanced DC/DC controller designed to deliver high efficiency and performance. In this comprehensive article, we'll delve into the intricacies of the TPS43060RTER, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TPS43060RTER's Overview

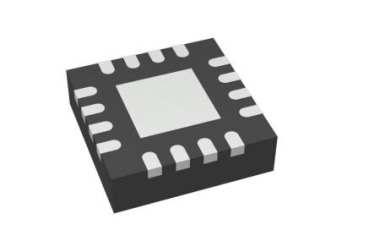

The TPS43060RTER is a single-output step-up (boost) DC/DC controller developed by Texas Instruments (TI). It is designed to efficiently convert lower input voltages to higher regulated output voltages while maintaining stable operation under a wide range of conditions. This controller supports output voltages from 4.5V to 58V and operates with input voltages ranging from 4.5V to 38V, making it suitable for both low- and mid-range voltage systems.
Key Features
Let's delve into the standout features that make the TPS43060RTER a standout in the world of electronics:
· The device supports a wide operating supply voltage range from 4.5V to 38V.
· The output voltage can be adjusted up to 58V for flexible power conversion designs.
· The controller operates with a maximum switching frequency of 1000kHz for compact designs and reduced inductor size.
· The typical quiescent current is 0.6mA, allowing for energy-efficient performance in standby conditions.
· The PWM control method ensures precise regulation and stable operation.
· The device integrates synchronous rectification to reduce power loss and improve conversion efficiency.
· The programmable switching frequency gives engineers design flexibility for EMI optimization.
· The operating temperature range from -40°C to 150°C guarantees reliability in harsh environments.
· The compact 16-pin WQFN package allows for efficient PCB layout in space-constrained systems.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TPS43060RTER:
Type | Parameter |
Number of Outputs | 1 |
Topology | Step Up |
Output Voltage (V) | 4.5 to 58 |
Maximum Switching Frequency (kHz) | 1000 |
Minimum Input Voltage (V) | 4.5 |
Maximum Input Voltage (V) | 38 |
Operating Supply Voltage Range (V) | 4.5 to 38 |
Typical Quiescent Current (mA) | 0.6 |
Typical Gate Driver Pull Up Resistance (Ohm) | 3/2.8 |
Typical Gate Driver Pull Down Resistance (Ohm) | 2/1.9 |
Minimum Switching Frequency (kHz) | 50 |
Synchronous Rectifier | Yes |
Synchronous Clock | Yes |
Control Method | PWM |
Programmability | Yes |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 3.15(Max) |
Package Length | 3.15(Max) |
PCB changed | 16 |
Standard Package Name | QFN |
Supplier Package | WQFN EP |
Pin Count | 16 |
Lead Shape | No Lead |
Applications
The TPS43060RTER finds its applications in a wide variety of power management systems where efficiency, space, and performance are crucial:
· Industrial and factory automation systems
· Automotive power modules
· Communication base stations
· Battery-powered devices and power banks
· LED lighting systems
· Portable medical or instrumentation equipment
TPS43060RTER's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TPS43060RTER is a powerful, flexible, and efficient step-up DC/DC controller that helps engineers simplify their power supply design without compromising performance. Its robust specifications, wide voltage range, and compact WQFN package make it a dependable choice for next-generation electronic systems.
