SST26VF064B-104I/MF: Features, Specs & More
When it comes to embedded systems and high-performance electronics, choosing the right flash memory can define the reliability and speed of your design. One of the most trusted solutions in the market is Microchip Technology's SST26VF064B-104I/MF, a 64M-bit NOR Flash that combines exceptional performance, fast data access, and robust endurance. In this comprehensive article, we'll delve into the intricacies of the SST26VF064B-104I/MF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
SST26VF064B-104I/MF's Overview
SST26VF064B-104I/MF's Manufacturer
SST26VF064B-104I/MF's Overview
The SST26VF064B-104I/MF is a serial NOR Flash memory developed by Microchip Technology. It operates with SPI, Dual SPI, and Quad SPI interfaces, making it ideal for fast, low-pin-count data storage in embedded systems. This device delivers 64 megabits of storage capacity and supports operation voltages from 2.3V to 3.6V, offering compatibility across a range of designs. It also provides 8ns maximum access time, ensuring smooth and responsive read performance for real-time applications.
Key Features
Let's delve into the standout features that make the SST26VF064B-104I/MF a standout in the world of electronics:
· The device provides 64M-bit NOR Flash memory density for flexible storage capacity.
· It supports SPI, Dual SPI, and Quad SPI interfaces for efficient serial communication.
· It delivers 8ns access time, ensuring rapid data retrieval and low latency.
· It features symmetric block architecture with 4KB sectors for flexible memory management.
· It offers programmability and fast erase times, enhancing productivity in system development.
· It operates under a wide voltage range of 2.3V to 3.6V, supporting multiple platform designs.
· It runs at a maximum frequency of 104 MHz, making it suitable for high-speed embedded systems.
· It provides industrial-grade temperature support from -40°C to +85°C for robust performance.

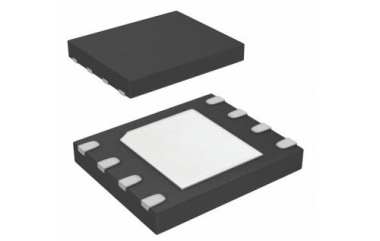

· It ensures surface-mount packaging (WDFN EP, 8-pin) for compact PCB integration.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the SST26VF064B-104I/MF:
Type | Parameter |
Cell Type | NOR |
Chip Density (bit) | 64M |
Architecture | Sectored |
Boot Block | Yes |
Block Organization | Symmetrical |
Location of Boot Block | Bottom|Top |
Address Bus Width (bit) | 32 |
Sector Size | 4Kbyte x 2048 |
Page Size | 256byte |
Number of Bits/Word (bit) | 1/2/4 |
Number of Words | 64M/32M/16M |
Programmability | Yes |
Timing Type | Synchronous |
Max. Access Time (ns) | 8 |
Maximum Erase Time (S) | 0.05/Chip |
Maximum Programming Time (ms) | 1.5/Page |
Process Technology | 70nm |
Interface Type | Serial (SPI, Dual SPI, Quad SPI) |
Minimum Operating Supply Voltage (V) | 2.3 |
Maximum Operating Frequency (MHz) | 104 |
Typical Operating Supply Voltage (V) | 2.5|3|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Programming Voltage (V) | 2.3 to 3.6 |
Operating Current (mA) | 20 |
Program Current (mA) | 25 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Command Compatible | Yes |
ECC Support | No |
Support of Page Mode | No |
Minimum Endurance (Cycles) | 100000 |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 0.73 |
Package Width | 6 |
Package Length | 5 |
PCB changed | 8 |
Standard Package Name | DFN |
Supplier Package | WDFN EP |
Pin Count | 8 |
Lead Shape | No Lead |
* SST26VF064B-104I/MF's Datasheet
Applications
The Microchip SST26VF064B-104I/MF is widely used in applications that require fast data access, stability, and longevity.
· Automotive Electronics: Suitable for infotainment systems, dashboards, and ECUs requiring reliable non-volatile memory.
· Consumer Electronics: Used in smart devices, set-top boxes, and handheld gadgets for code storage.
· Industrial Equipment: Perfect for programmable logic controllers (PLCs), IoT sensors, and automation modules.
· Networking Systems: Applied in routers, modems, and communication equipment for configuration storage.
· Embedded Systems: Ideal for firmware storage in microcontroller-based designs.
SST26VF064B-104I/MF's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip SST26VF064B-104I/MF is more than just a memory chip—it's a compact, powerful, and efficient NOR Flash solution designed for modern electronics. Whether you're building advanced IoT devices, automotive systems, or industrial controllers, this flash memory offers the balance of speed, endurance, and reliability your design needs.
