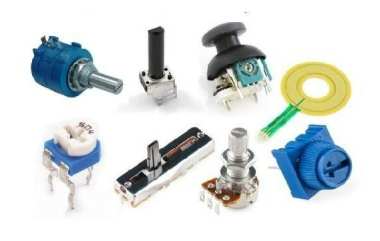

How to Tell If a Potentiometer Is Bad?
In the electronic components industry, potentiometers might seem simple in structure, but they actually play an essential role in real-world devices—from volume control and brightness adjustment to voltage division and gain tuning, you can't do without them. When a potentiometer fails, it can not only prevent a device from working properly but also cause noise, signal issues, or even safety risks. This article will systematically cover what a potentiometer is, how it works, what signs indicate it's broken, and how to tell if it's failing.
Catalog
II. Signs a Potentiometer is Bad
III. How to Check a Potentiometer?
I. What is a Potentiometer?
A potentiometer is a variable resistor with three terminals—usually two fixed ends plus a sliding or wiper terminal. Its structure generally includes a resistive element (which could be carbon film, metal film, conductive plastic, or a wire-wound type), a movable contact (wiper or slider), and terminals that connect to an external circuit. By moving the wiper along the resistive element, you change the resistance between the sliding terminal and the fixed terminals, allowing you to control voltage or current in a circuit.
Potentiometers are used in a wide range of applications, such as volume knobs in audio equipment, adjustment dials on instruments, or setting controls on industrial panels. Because they combine mechanical and electrical functions, they are more prone to wear, poor contact, thermal stress, or environmental factors, which can lead to performance decline or failure.
II. Signs a Potentiometer is Bad
Adjustment Malfunction: When you turn or slide the potentiometer, the circuit parameters might not change at all, change unevenly, or respond with delay. For example, the volume might jump up and down or the device output can't be adjusted steadily.
Noise Interference: You may hear harsh clicking or static sounds during operation, especially in audio circuits. This usually comes from wear on the resistive element or oxidation on the contacts causing poor connection.
Signal Interruption or Output Problems: The device might output no signal at all, or experience intermittent sound, flickering displays, or other abnormalities. In extreme cases, an internal open circuit can break the circuit, while a short circuit may overload the device.
Mechanical Failure: The shaft might get stuck, rotation could become stiff, or sliding action might be uneven. Over time, wear or dust buildup can make operation difficult.
Physical Damage: Cracked casing, corroded or bent pins, or burn marks from overheating are all common signs. These often result from physical impact, overcurrent, or environmental corrosion.
III. How to Check a Potentiometer?
There are several methods to check whether a potentiometer is damaged:
1. Visual Inspection
Check the exterior: Look for clean, intact housing and signs of deformation, cracks, or burn marks. These visual clues often give a first indication of the component’s condition.
Check the knob: Rotate the potentiometer knob to see if it moves smoothly and doesn’t stick or feel loose. Knob flexibility is an important indicator of the potentiometer’s health.
2. Multimeter Measurement
Measure total resistance across the terminals: Use a multimeter to measure the resistance between the two fixed terminals (AC terminals) and compare it with the rated value. A large deviation may indicate damage.
Measure variable resistance: Connect one probe to a fixed terminal and the other to the wiper (center terminal), then slowly turn the knob. If the reading jumps, drops unexpectedly, or cuts out, the moving contact likely has poor connectivity.
3. Functional Testing
Check sliding performance: Set the knob at a midpoint between the two ends and rotate it slowly. Observe if the resistance changes smoothly and continuously. Sudden stops or uneven changes indicate potential faults.
Test switch function (if applicable): For potentiometers with an integrated switch, verify that it opens and closes properly by measuring resistance in both states.
4. Other Considerations
Consider the environment: Using potentiometers in harsh conditions—high temperature, high humidity, or strong magnetic fields—can accelerate wear or damage, so take the operating environment into account.
Regular maintenance: To extend life and keep performance stable, periodically clean the potentiometer, check knob movement, and measure resistance.
In short, combining visual checks, multimeter measurements, functional testing, and awareness of the operating environment allows you to accurately judge whether a potentiometer is failing. If a potentiometer is damaged or performance has dropped, it should be replaced promptly to ensure proper device operation.
IV. Conclusion
Understanding how to diagnose and maintain potentiometers is crucial for keeping electronic devices running smoothly. By combining visual inspection, measurement tools, and functional tests, you can quickly pinpoint problems and replace failing components. This practical knowledge not only helps improve personal skills but also serves as a reliable reference for industry applications. For more detailed solutions in specific scenarios, professional platforms and technical documentation can offer further guidance.
