A700D107M006ATE018: Features, Specs & More
In modern electronics, selecting the right capacitor is crucial for ensuring efficiency, reliability, and longevity of devices. The KEMET A700D107M006ATE018 is a high-performance aluminum polymer capacitor designed for demanding applications. Its compact SMD design, low ESR, and stable performance make it an essential component in consumer electronics, automotive circuits, and industrial systems. In this comprehensive article, we'll delve into the intricacies of the A700D107M006ATE018, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
A700D107M006ATE018's Manufacturer
A700D107M006ATE018's Overview

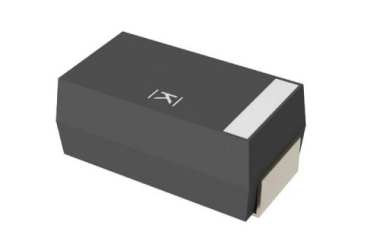

The KEMET A700D107M006ATE018 is a surface-mount aluminum polymer capacitor with a capacitance of 100µF and a rated voltage of 6.3VDC. It is designed for high-efficiency energy storage and filtering in compact electronic circuits. This capacitor is polarized, ensuring correct installation, and offers high reliability under extreme conditions.
Key Features
Let's delve into the standout features that make the A700D107M006ATE018 a standout in the world of electronics:
· The capacitor has a capacitance of 100µF, providing stable energy storage.
· It features a very low equivalent series resistance (0.018 Ohm) for minimal energy loss.
· The rated voltage is 6.3VDC, suitable for low-voltage electronics.
· It has a high ripple current rating of 3.7A, supporting demanding applications.
· Its operating temperature range from -55°C to 125°C ensures performance in harsh environments.
· The capacitor is flat in construction for compact PCB mounting.
· It supports surface-mount installation, allowing automated assembly.
· The tolerance is 20%, giving a balance between performance and cost.
· Long life of 2000 hours ensures reliability for continuous operation.
· Packaging is tape and reel, ideal for high-volume production lines.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the A700D107M006ATE018:
Type | Parameter |
Type | Polymer |
Capacitance Value | 100uF |
Tolerance | 20% |
Voltage | 6.3VDC |
ESR (Ohm) | 0.018 |
Equivalent Series Resistance Type | Very Low |
IR (mA) | 3.7 |
IL (uA) | 25@5Min |
Lifetime (H) | 2000 |
Polarity | Polar |
Construction | Flat |
Mounting | Surface Mount |
Number of Terminals | 2 |
Size (mm) | 7.3 X 4.3 X 2.8 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Product Weight (g) | 0.19658 |
Product Length (mm) | 7.3 |
Product Depth (mm) | 4.3 |
Product Height (mm) | 2.8 |
* A700D107M006ATE018's Datasheet
Applications
The KEMET A700D107M006ATE018 is versatile and widely used in:
· Power supply circuits for smoothing and filtering voltage.
· Decoupling applications to prevent voltage spikes in sensitive electronics.
· Consumer electronics like smartphones, tablets, and wearable devices.
· Industrial electronics requiring reliable high-temperature operation.
· Automotive electronics for stable performance in demanding conditions.
A700D107M006ATE018's Manufacturer
KEMET Corporation, a subsidiary of Yageo Corporation, manufactures a broad selection of capacitor technologies such as tantalum, aluminum, multilayer ceramic, film, paper, polymer electrolytic, and supercapacitors. KEMET also manufacturers a variety of other passive electronic components, such as AC line filters, EMI cores and filters, flex suppressors, electro-mechanical devices (relays), metal composite inductors, ferrite products, sensors and transformers/magnetics. The product line consists of nearly 5 million distinct part configurations distinguished by various attributes, such as dielectric (or insulating) material, configuration, encapsulation, capacitance (at various tolerances), voltage, performance characteristics, and packaging.
Conclusion
The KEMET A700D107M006ATE018 capacitor is a compact yet powerful component. Its low ESR, high current capability, and long lifetime make it an ideal choice for engineers looking to optimize electronic circuits. Whether used in consumer gadgets, industrial devices, or automotive applications, this capacitor delivers consistent performance under challenging conditions.
