SCH3114I-NU: Features, Specs & More
In the rapidly evolving world of electronics, choosing the right microchip can make all the difference in performance, reliability, and scalability. The SCH3114I-NU stands out as a versatile I/O controller designed for industrial applications. With a low supply current of just 0.001A and a 128-pin VTQFP package, this controller offers exceptional integration capabilities for engineers and hardware designers. In this comprehensive article, we'll delve into the intricacies of the SCH3114I-NU, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
SCH3114I-NU's Overview

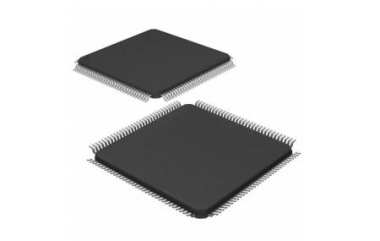

The SCH3114I-NU is an industrial-grade I/O controller microchip. It is designed to handle multiple parallel ports, timers, counters, and UART interfaces. This controller offers real-time clock functionality and watchdog timer support. Its 0.3um process technology ensures energy efficiency while maintaining reliability. The chip operates in extreme temperatures from -40°C to 85°C. It is fully programmable and mounted in a surface-mount 128-pin VTQFP tray package.
Key Features
Let's delve into the standout features that make the SCH3114I-NU a standout in the world of electronics:
· It can manage up to forty input/output pins simultaneously.
· The chip includes one IrDA interface channel for infrared communication.
· It is equipped with a single timer for time-sensitive operations.
· A dedicated counter enhances counting and event management.
· The SCH3114I-NU provides three UARTs for serial communication.
· Programmability allows customization for specific industrial tasks.
· A built-in watchdog timer ensures stable system operation.
· It uses a 0.3µm process technology for efficient performance.
· Operating voltage ranges from 3.3V typical to a maximum of 5V.
· Maximum supply current is extremely low at 0.001A, reducing power consumption.
· It functions reliably across a wide temperature range from -40°C to 85°C.
· The device does not support the I2C bus.
· A real-time clock is integrated for time-sensitive applications.
· It comes in a surface-mount tray package with a standard VTQFP footprint.
· The package measures 14mm in width, 14mm in length, and 1mm in height.
· The chip features 128 pins with gull-wing lead shapes for secure mounting.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the SCH3114I-NU:
Type | Parameter |
Controller Type | I/O Controller |
Number of Parallel Ports | 1 |
Maximum Number of I/Os | 40 |
Number of IrDA Interface Channels | 1 |
Number of Timers | 1 |
Number of Counters | 1 |
Number of USB Ports | 0 |
Number of UARTs | 3 |
Programmability | Yes |
Watchdog Timer | Yes |
Process Technology | 0.3um |
Operating Supply Voltage (V) | 3.3 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 5 |
Maximum Supply Current (A) | 0.001 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
I2C Bus Support | No |
Real Time Clock | Yes |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1 |
Package Width | 14 |
Package Length | 14 |
PCB changed | 128 |
Standard Package Name | QFP |
Supplier Package | VTQFP |
Pin Count | 128 |
Lead Shape | Gull-wing |
Applications
The SCH3114I-NU microchip is suitable for a wide range of applications, including:
· Industrial automation systems requiring reliable I/O control.
· Embedded systems that demand precise timing and counters.
· Devices needing infrared communication through IrDA channels.
· Applications where low power consumption is critical.
· Systems requiring robust real-time clock functionality.
· Customizable electronics projects that benefit from programmable I/O.
SCH3114I-NU's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip SCH3114I-NU is a versatile I/O controller that combines efficiency, programmability, and industrial-grade reliability. Its compact 128-pin VTQFP package, low power consumption, and wide operating temperature range make it an ideal choice for embedded systems, industrial automation, and specialized electronics projects. Engineers seeking a robust and precise I/O solution will find this microchip highly valuable.
