HMC717ALP3E: Features, Specs & More
In modern RF system design, component selection directly impacts signal integrity, noise performance, and overall system efficiency. The ADI HMC717ALP3E is a compact, high-performance low noise amplifier designed to meet the demands of wideband RF and microwave applications up to 6GHz. In this comprehensive article, we'll delve into the intricacies of the HMC717ALP3E, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
HMC717ALP3E's Overview

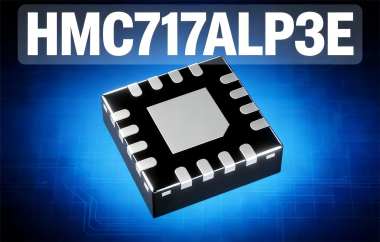

The HMC717ALP3E is a single-channel RF low noise amplifier optimized for broadband operation up to 6GHz. It is designed to amplify weak RF signals while introducing minimal additional noise. The device operates from a single supply and is housed in a compact 16-pin LFCSP package for space-constrained PCB designs.
Key Features
Let's delve into the standout features that make the HMC717ALP3E a standout in the world of electronics:
· The HMC717ALP3E supports RF operation up to 6 GHz.
· It delivers a typical power gain of 14.5 dB at 6 GHz.
· The device provides a low typical noise figure of 1.3 dB at 6 GHz.
· It achieves a typical output power of 18 dBm at 6 GHz.
· The amplifier offers a high typical output intercept point of 29.5 dBm at 6 GHz.
· The design supports single-supply operation for simplified power management.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the HMC717ALP3E:
Type | Parameter |
Manufacturer Type | Low Noise Amplifier |
Number of Channels per Chip | 1 |
Maximum Operating Frequency (MHz) | 6000 |
Typical Power Gain (dB) | 14.5@6000MHz |
Typical Output Power (dBm) | 18@6000MHz |
Typical Output Intercept Point (dBm) | 29.5@6000MHz |
Maximum Input Return Loss (dB) | 9(Typ)@6000MHz |
Maximum Output Return Loss (dB) | 15(Typ)@6000MHz |
Typical Noise Figure (dB) | 1.3@6000MHz |
Maximum Operating Supply Voltage (V) | 5 |
Minimum Single Supply Voltage (V) | 3 |
Maximum Supply Current (mA) | 100@5V |
Power Supply Type | Single |
Maximum Power Dissipation (mW) | 520 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Cut Tape |
Mounting | Surface Mount |
Package Height | 0.83 mm |
Package Width | 3 mm |
Package Length | 3 mm |
PCB changed | 16 |
Standard Package Name | CSP |
Supplier Package | LFCSP EP |
Pin Count | 16 |
Lead Shape | No Lead |
Applications
The HMC717ALP3E is suitable for a wide range of RF and microwave systems.
· Cellular and wireless infrastructure receivers
· Microwave radio and point-to-point links
· Radar and sensing front-end modules
· Test and measurement equipment
· Satellite and aerospace communication systems
Its low noise figure makes it particularly valuable in receiver front-end architectures.
HMC717ALP3E's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The ADI HMC717ALP3E is a robust and compact 6GHz low noise amplifier that meets the needs of modern RF systems requiring low noise, high gain, and strong linearity. Its wide operating temperature range, single-supply operation, and small LFCSP package make it an excellent choice for both commercial and industrial RF applications. For engineers seeking a reliable broadband LNA from a trusted manufacturer, the HMC717ALP3E remains a proven and practical solution.
