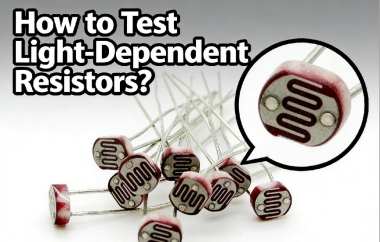

How to Test Light-Dependent Resistors?
A light-dependent resistor (LDR) is an electronic component that adjusts its resistance according to changes in light intensity. It is widely used in optoelectronic technology, optical communication, photogrammetry, automatic control, and smart lighting systems. With the development of industrial automation and intelligent devices, the use of LDRs in industrial production, scientific experiments, and precision instruments has become increasingly common. To ensure stable device operation and accurate measurement data, it is necessary to conduct scientific and systematic testing of LDRs. This article provides a comprehensive introduction to the definition, working principle, required materials and tools, and both static and dynamic testing methods of LDRs. It also further analyzes commonly used detection methods such as automatic light modulation technology, the AC method, and the POM method.
Catalog
I. What is a Light-Dependent Resistor?
II. Testing Materials and Tools
I. What is a Light-Dependent Resistor?
A light-dependent resistor (photoresistor or LDR) is a light-sensitive component whose core function is to convert light signals into changes in electrical resistance. Its working principle is based on the photoconductive effect of semiconductor materials: when light strikes the photosensitive material, the energy from photons excites charge carriers, increasing the material’s conductivity and thereby reducing its resistance. In a dark environment, the number of charge carriers decreases, and the resistance increases. This characteristic, where resistance changes with light intensity, allows LDRs to serve as core components in light-controlled switches, light measurement instruments, and automatic dimming systems.
LDRs have several advantages, including high sensitivity, short response time, and a wide range of resistance change. Therefore, they are widely used in industrial control, automatic lighting systems, and laboratory optical measurements. Depending on the material and application, the dark resistance of an LDR is usually in the megaohm range, while under bright conditions it can drop to several hundred ohms or even lower. Its simple structure and low cost make it an indispensable fundamental component in the field of optoelectronic detection.
Additionally, the performance of an LDR is influenced by the type of material, packaging form, and environmental factors such as light wavelength, illumination, and temperature. In engineering applications, scientific testing methods are necessary to ensure stable performance and long service life. This necessity is the main focus of the following sections of this article.
II. Testing Materials and Tools
Before testing an LDR, it is necessary to prepare professional testing materials and tools to ensure accurate and reproducible measurements. The testing materials mainly include a stable light source and the LDR to be tested. The light source should have adjustable intensity and, whenever possible, maintain consistent wavelength and illumination to ensure stable testing conditions. Common testing tools include digital multimeters or high-precision ohmmeters to measure both the dark resistance and bright resistance of the LDR. Oscilloscopes and signal generators are used for dynamic response testing, allowing the recording of resistance changes in response to light variation. For high-precision measurements, constant current or constant voltage power supplies can provide stable bias, while standard lux meters can be used to calibrate the light source and enable quantitative testing and comparison. This combination of tools can meet the requirements of both basic resistance measurements and dynamic response analysis, providing reliable data for LDR testing.
III. Basic Testing Methods
1. Static Testing
Static testing is the most basic method for testing LDRs and is primarily used to evaluate the resistance changes of the component under stable lighting conditions. A multimeter is typically used to measure the dark and bright resistance of the LDR. The dark resistance measured under blocked light conditions should reach the megaohm range. The bright resistance measured under standard illumination should be significantly lower than the dark resistance. By comparing the range of resistance change between the bright and dark states, the sensitivity and performance of the LDR can be assessed. If the resistance changes beyond the normal range or does not respond to light, the component may have aged or been damaged and requires further inspection.
2. Dynamic Testing
Dynamic testing focuses on the real-time response of an LDR to changes in light intensity. By quickly blocking or exposing the light, an oscilloscope or signal generator records the response time and resistance change curve of the LDR. Dynamic testing allows the analysis of response speed, hysteresis characteristics, and stability, making it especially suitable for industrial applications that require high response frequencies and fast light sensing, such as automatic control systems and rapid light detection devices. Repeated light switching tests can also evaluate the durability and reliability of the LDR.
IV. Common Detection Methods
In engineering and industrial testing environments, beyond static and dynamic tests, more specialized techniques provide higher precision and more systematic performance evaluations.
1. Automatic Light Modulation Technology
Automatic light modulation technology achieves precise LDR detection using a modulated light source and a microprocessor. By modulating the light source at a specific frequency and using a synchronized detection circuit, it can suppress ambient light interference and output accurate resistance change data. This method is suitable for batch testing and automated detection platforms, allowing high-precision acquisition of response curves.
2. AC Method
The AC method uses an alternating current signal to measure the LDR. The LDR exhibits impedance changes according to light intensity in an AC circuit. By measuring the AC current and voltage response, the dynamic performance and anti-interference capability of the component can be evaluated. This method is suitable for optoelectronic applications that are sensitive to response frequency.
3. POM Method
The POM method (photonic optical multi-port model) calculates the resistance of an LDR by measuring current and capacitance changes at different optical ports. It can precisely analyze the electrical characteristics of the component under varying light intensities. This method is suitable for research and development applications where the frequency response, linearity, and dynamic characteristics of the LDR are of high importance.
V. Conclusion
As an important component in the field of optoelectronics, the LDR is widely used in industrial control, light measurement, and automatic dimming systems due to its high sensitivity, large resistance range, and fast response. However, to ensure stable operation and measurement accuracy in practical applications, scientific and systematic testing is essential. In engineering practice, detection methods should be chosen according to specific application requirements, testing conditions, and precision needs to guarantee the high-precision performance and long-term reliability of LDRs.
