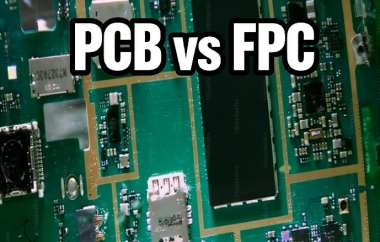

PCB vs FPC: What's the Difference?
In the electronic components industry, PCB and FPC are two of the most fundamental and widely used circuit carrier structures. As products such as smartphones, computers, automotive electronics, and wearable devices continue moving toward thinner designs, higher integration, and more complex structures, engineers increasingly need to make reasonable choices between PCB and FPC during circuit design. Although both belong to the printed circuit technology family, they differ significantly in terms of material structure, mechanical properties, design approaches, and application scenarios. The following sections briefly analyze PCB and FPC from the perspectives of basic concepts, structural characteristics, and practical applications.
Catalog
III. The Differences Between PCB and FPC
I. What is PCB?
PCB stands for Printed Circuit Board. In the electronics industry, PCB is usually referred to as a “rigid board.” It serves as an important support platform for electronic components and is also a key structure for establishing electrical connections. PCB typically uses FR-4 glass fiber epoxy resin as its base material. This material provides high mechanical strength and strong stability, which means the board structure is relatively rigid and cannot be bent or flexed. By covering the base material with copper foil and forming circuit patterns through an etching process, and then mounting various electronic components through soldering, a PCB can form a complete electronic circuit system. Because PCB offers excellent stability and load-bearing capability, it is widely used in electronic devices that do not require bending but demand strong structural support, such as computer motherboards, server boards, industrial control boards, and smartphone mainboards. In many ways, PCB can be considered one of the most essential and fundamental circuit platforms in modern electronic devices.
II. What is FPC?
FPC is the abbreviation for Flexible Printed Circuit, commonly known as a flexible circuit board or simply a “flex board.” From a technical perspective, FPC is actually a special type of PCB, but it differs greatly from traditional rigid PCBs in terms of materials and structure. FPC usually uses polyimide (PI) or polyester film as the base material. These materials provide excellent flexibility, allowing the circuit board to bend, fold, or even flex repeatedly without affecting its electrical performance. Because of this flexible property, FPC is particularly suitable for positions inside electronic devices where dynamic connections are required or where space is limited. Typical examples include camera module cables, display screen ribbons, foldable phone structural connections, and signal transmission between various small electronic modules. As electronic product designs become increasingly complex, FPC is no longer used only for simple wiring connections. It has gradually become an important design method for creating three-dimensional circuit structures and is playing an increasingly critical role in modern consumer electronics.
III. The Differences Between PCB and FPC
From the perspective of electronic design and manufacturing, the most fundamental difference between PCB and FPC lies in their materials and structures. PCB uses rigid materials such as FR-4 as its substrate, which gives it strong stability and high structural strength, but it cannot bend and generally exists in a flat form. In contrast, FPC uses flexible film materials as its substrate, allowing it to bend and flex freely, which makes it suitable for complex spatial layouts. In addition, the two technologies differ significantly in circuit structure design. Traditional PCBs are usually planar structures, and if three-dimensional wiring is required, it typically needs to be achieved through connectors, slots, or interface cards. These connection structures not only occupy additional space but may also affect signal stability. In comparison, FPC can achieve spatial extension directly through flexible interconnection design. A single piece of FPC can connect two or more PCBs together and can be bent at different angles according to product structure requirements, forming a more flexible three-dimensional circuit layout.
In addition, FPC also shows clear advantages in terms of system connection methods. Traditional PCBs usually need connectors or terminals to establish circuit connections between boards. FPC can also use terminal connections, but it can additionally connect multiple rigid PCBs directly through a single flexible circuit board using a rigid-flex design approach. This type of design reduces the number of connectors and terminals, which helps minimize signal interference and improves signal integrity. At the same time, it can enhance the overall reliability and stability of the product. In some high-density electronic products, multiple rigid PCB modules can be connected through FPC with a well-planned layout to form a complex rigid-flex circuit system. This structure has already been widely used in devices such as smartphones, digital cameras, and wearable electronics.
IV. Conclusion
In summary, although PCB and FPC both belong to printed circuit technologies, they play different roles in electronic product design. PCB, with its strong and stable structure and mature manufacturing processes, serves as the core circuit platform for most electronic devices. FPC, on the other hand, relies on flexible materials and spatial layout advantages to provide irreplaceable value in electronic products that require thin designs and complex structural connections. As industries such as consumer electronics, smart devices, and automotive electronics continue to evolve, electronic products demand higher space utilization and greater system integration. This trend is driving the rapid development of FPC technology. At the same time, rigid-flex board technology, which combines PCB and FPC into a single structure, is gradually becoming an important solution for high-end electronic product design. In the future, as innovation continues in the electronic components industry, PCB and FPC will keep evolving together and will jointly support the design and manufacturing of the next generation of electronic products.
