BTS500851TMAATMA1: Overview, Features and Applications
In this article, we'll embark on a journey into the heart of innovation with a spotlight on the Infineon Technologies BTS500851TMAATMA1. This powerhouse promises to redefine automotive electronics, setting new standards for current limit switches. Let's delve into its features, specifications, applications, and the prowess of its manufacturer.
BTS500851TMAATMA1's Overview

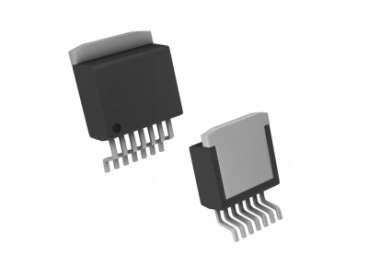

At the core of automotive efficiency lies the BTS500851TMAATMA1, a current limit switch designed to elevate performance. As an integral component, it operates with a single input and output, seamlessly managing a voltage range from 5V to 58V. With a staggering 44A maximum output current, this automotive marvel ensures reliability in diverse applications.
Key Features:
1. Robust Single Input/Output Design: The simplicity of one input and one output belies the complexity of its capabilities. This design streamlines the automotive system, ensuring efficient power distribution.
2. Wide Voltage Range: From 5V to 58V, the BTS500851TMAATMA1 adapts to the dynamic voltage requirements of modern vehicles, offering a versatile solution for varied automotive applications.
3. High Output Current: With a maximum output current of 44A, this current limit switch handles demanding tasks with ease, making it a stalwart companion for high-performance automotive systems.
4. Automotive-Grade Reliability (AEC-Q100): Infineon's commitment to automotive excellence is evident in the AEC-Q100 certification, assuring reliability and performance under extreme conditions.
Specifications:
Type | Parameter |
Number of Inputs | 1 |
Number of Outputs | 1 |
Maximum Output Current (A) | 44(Typ) |
Minimum Input Voltage (V) | 5 |
Maximum Input Voltage (V) | 58 |
Switch On Resistance (MOhm) | 7.2 |
Maximum Power Dissipation (mW) | 170000 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 4.4 |
Package Width | 9.25 |
Package Length | 10 |
PCB changed | 7 |
Tab | Tab |
Standard Package Name | TO-220 |
Supplier Package | TO-220 SMD |
Pin Count | 8 |
Applications:
The versatility of the BTS500851TMAATMA1 extends across various automotive applications, including:
· Engine Control Units (ECUs): The BTS500851TMAATMA1 optimizes power distribution within ECUs, ensuring efficient and reliable performance for the heart of the vehicle's control system.
· Power Distribution Modules: In power distribution modules, this current limit switch facilitates seamless control and distribution of power, enhancing the overall efficiency of the vehicle's electrical systems.
· Battery Management Systems: Leveraging its high output current and voltage adaptability, the BTS500851TMAATMA1 excels in battery management systems, contributing to the longevity and reliability of electric vehicle power sources.
· Electric Power Steering Systems: As a key component in electric power steering, this Infineon technology provides precise control over power delivery, enhancing the responsiveness and efficiency of steering systems.
· LED Lighting Systems: The BTS500851TMAATMA1's versatility extends to LED lighting systems, ensuring a stable and regulated power supply for efficient and durable automotive lighting solutions.
BTS500851TMAATMA1's Manufacturer
Infineon Technologies, a global leader in semiconductor manufacturing, epitomizes innovation and reliability in the ever-evolving world of electronics. With a rich legacy and a diverse portfolio spanning microcontrollers, power semiconductors, sensors, and security solutions, Infineon consistently pushes technological boundaries to redefine industry standards.
Conclusion:
In conclusion, the Infineon Technologies BTS500851TMAATMA1 emerges as a game-changer in the realm of automotive electronics. Its robust features, precision specifications, and diverse applications position it as a cornerstone for modern automotive systems.
