What Are Power Inductors?

The SOH08 In the realm of electronic device design and manufacturing, Power Inductors are a crucial technological component. This article delves into the applications, characteristics, and current trends of Power Inductors.

I. What are Power Inductors?

Power Inductors are vital components in electronic devices. Primarily used in power systems and RF circuits, they play a crucial role in stabilizing currents, providing power filtration, and facilitating energy transfer. Power Inductors exhibit characteristics such as saturation inductance, high saturation current, and low DC resistance, allowing them to operate efficiently under high load conditions. Their diverse materials and structures make them suitable for various applications.

II. Characteristics of Power Inductors:

· Saturation Inductance Design: Power Inductors are typically designed with saturation inductance to ensure efficient operation under high current loads.

· High Saturation Current and Low DC Resistance: They possess high saturation current and low DC resistance, contributing to increased efficiency and reduced energy loss.

· High-Temperature Resistance: Capable of withstanding high temperatures, ensuring reliable operation in diverse environmental conditions.

· Use of High Permeability Materials: Coils often utilize materials with high permeability, such as ferrite or magnetic powder, enhancing the inductor's inductive capabilities.

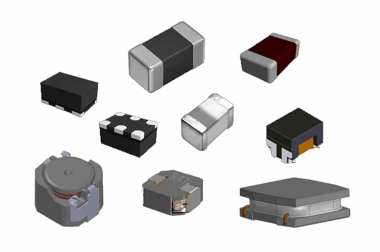

· Diverse Sizes and Packaging Forms: Available in various sizes and packaging forms to meet different application requirements, including surface-mount (SMD) and plug-in power inductors.

III. Packaging and Size:

1. Packaging Forms:

· Surface-Mount (SMD): Many Power Inductors utilize surface-mount packaging for easy automated soldering on printed circuit boards (PCBs). Common SMD packages include 0805, 1206, 2512, with smaller sizes suitable for compact PCB designs.

· Plug-In: Some Power Inductors are designed as plug-in components, inserted into the circuit board via pins. This packaging is suitable for specific applications requiring larger inductance values and higher power handling capabilities.

2. Size and Dimensions:

· Compact Design: Aligned with the increasing demand for miniaturization and lightweight electronic devices, Power Inductors are trending towards smaller designs, allowing integration of more functional components in limited spaces.

· Multilayer Coils: Some Power Inductors adopt a multilayer coil design to increase inductance without sacrificing size. The structure of multilayer coils allows achieving larger inductance values within limited space.

· Spiral Coils: Designs incorporating spiral coils are also common, optimizing coil layouts to achieve higher inductance values while maintaining a smaller footprint. This design is suitable for scenarios requiring high inductance and compact dimensions.

3. Packaging Materials:

· High-Temperature Materials: Given the potential exposure to high temperatures in electronic devices, the packaging materials for Power Inductors are often selected for their ability to withstand elevated temperatures, ensuring stability and reliability.

· Magnetic Materials: The packaging may include magnetic materials to further enhance the inductive capabilities of the Power Inductor.

IV. Applications:

Power Inductors find widespread applications in various electronic devices, including power modules, DC-DC converters, RF amplifiers, and communication equipment. These components provide stable power support and energy conversion capabilities.

· Power Modules: Crucial in power modules, such as the LM2675 Simple Switcher voltage regulator from TI, Power Inductors store and release energy, assisting the regulator in providing a stable output voltage.

· DC-DC Converters: In DC-DC converters, Power Inductors facilitate energy transfer and current stabilization. The Analog Devices ADP2300 is a typical DC-DC step-down converter where Power Inductors contribute to efficient energy conversion.

· RF Amplifiers: Power Inductors in RF amplifiers serve the purpose of power filtering and stabilizing current. For instance, the Avago MGA-635P8 low-noise amplifier may incorporate Power Inductors to ensure power stability and reliable current.

· Communication Equipment: In highly complex communication equipment, like the Qualcomm Snapdragon X65 5G Modem, Power Inductors are utilized in multiple power management and RF circuits to ensure efficient device operation and communication performance.

V. Conclusion:

From large-scale communication devices to small wearable gadgets, the contribution of Power Inductors to power management and energy conversion is indispensable. As demands for power density and efficiency continue to rise, the design and manufacturing technology of Power Inductors evolve. The introduction of new materials, structures, and manufacturing processes allows Power Inductors to operate efficiently in compact spaces while handling higher power loads.
