000ST26C31BDR: Overview, Features, Applications & More
In this comprehensive guide, we'll explore the key features, specifications, applications, and shed light on the manufacturer's expertise.
ST26C31BDR's Overview

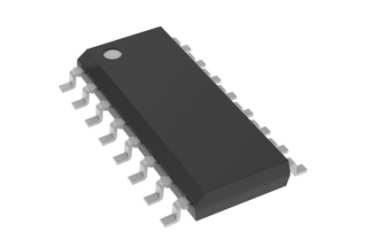

The STMicroelectronics ST26C31BDR stands as a testament to innovation and efficiency. Designed as a Quad Transmitter RS-422 with a 16-pin SO package, this component offers a robust solution for line transmission in diverse applications.
Key Features
1. At its core, the ST26C31BDR functions as a Line Transmitter, facilitating reliable data transmission in various electronic setups.
2. The transmitter adheres to the RS-422 communication standard, ensuring compatibility and seamless integration into a wide array of systems.
3. Its multidrop data transmission topology enhances flexibility, enabling connections to multiple devices on a single communication line.
4. With a focus on precision, the ST26C31BDR employs a differential signal type, enhancing noise immunity and signal integrity.
5. The 3-state driving mode adds versatility, allowing the transmitter to be in an active, high-impedance, or disabled state.
6. Featuring two transmitter enables, this component provides advanced control over the data transmission process.
Specifications
Type | Parameter |
Function | Line Transmitter |
Transmitter Communication Type | RS-422 |
Interface Standards | EIA-422|RS-422 |
Data Transmission Topology | Multidrop |
Number of Transmitters | 4 |
Transmitter Signal Type | Differential |
Number of Drivers per Line | 1 |
Driving Mode | 3-State |
Number of Transmitter Enables | 2 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Power Supply Type | Single |
Minimum Single Supply Voltage (V) | 4.5 |
Typical Single Supply Voltage (V) | 5 |
Maximum Single Supply Voltage (V) | 5.5 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.65(Max) |
Package Width | 4(Max) |
Package Length | 10(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SO |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The versatility of the ST26C31BDR opens the door to a myriad of applications, including:
· Industrial Automation: Reliable data transmission is crucial in automated systems, making the ST26C31BDR an ideal choice.
· Communications Systems: From networking equipment to telecommunications, the RS-422 communication standard ensures a stable and efficient data exchange.
· Instrumentation: Precision is key in instrumentation applications, and the ST26C31BDR's differential signal type plays a pivotal role in maintaining signal accuracy.
ST26C31BDR's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
In the intricate world of electronics, the STMicroelectronics ST26C31BDR shines as a beacon of efficiency and reliability. Whether you're delving into industrial automation, communications systems, or precision instrumentation, this Quad Transmitter RS-422 is a powerhouse that delivers where it matters most.
