AUIRG4PH50S: Features, Specifications & More
In this article, we'll delve into the intricacies of Infineon Technologies AUIRG4PH50S, a Trans IGBT Chip. Let's delve into the overview, features, specifications, applications, and the manufacturer's perspective on the AUIRG4PH50S.
AUIRG4PH50S's Overview

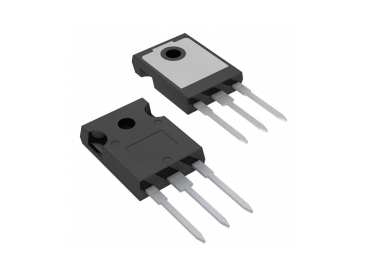

The Infineon Technologies AUIRG4PH50S is a Trans IGBT Chip, specifically designed for automotive applications. Representing a technological marvel, it operates as an N-channel single configuration, catering to the demanding needs of the automotive industry.
Key Features
Let's break down the key features that make the AUIRG4PH50S stand out in the realm of electronic components:
· With a maximum collector-emitter voltage of 1200V, the AUIRG4PH50S is engineered to handle high voltage requirements, ensuring stability and reliability in automotive applications.
· Capable of a maximum continuous collector current of 57A and a power dissipation of 200W, this chip boasts exceptional power-handling capabilities, making it a go-to choice for demanding automotive environments.
· The AUIRG4PH50S is designed to endure the challenging conditions of the automotive world. Its automotive-grade temperature range, from -55°C to 150°C, ensures optimal performance even in extreme environments.
Specifications
Here's a detailed breakdown of the specifications that make the AUIRG4PH50S a standout component:
Type | Parameter |
Channel Type | N |
Configuration | Single |
Maximum Gate Emitter Voltage (V) | ±20 |
Maximum Collector-Emitter Voltage (V) | 1200 |
Typical Collector Emitter Saturation Voltage (V) | 1.47 |
Maximum Continuous Collector Current (A) | 57 |
Maximum Gate Emitter Leakage Current (uA) | 0.1 |
Maximum Power Dissipation (mW) | 200 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 150 |
Supplier Temperature Grade | Automotive |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 20.7(Max) |
Package Width | 5.31(Max) |
Package Length | 15.87(Max) |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | TO-247 |
Supplier Package | TO-247AC |
Pin Count | 3 |
Lead Shape | Through Hole |
Applications
· Power Electronics Systems: The AUIRG4PH50S excels in power electronics systems, ensuring efficient energy conversion and reliable performance in various automotive applications.
· Motor Control Units: Leveraging its high voltage capabilities, this Trans IGBT Chip is ideal for motor control units, providing precise and robust control over automotive motors.
· Electric Vehicle Propulsion: As electric vehicles gain momentum, the AUIRG4PH50S plays a crucial role in their propulsion systems, delivering the power needed for enhanced performance.
· Battery Management Systems: In battery management systems, the AUIRG4PH50S ensures the safe and efficient distribution of power, contributing to the longevity and reliability of automotive batteries.
· Hybrid Electric Vehicles (HEVs): With its automotive-grade quality and temperature tolerance, the AUIRG4PH50S is a key component in HEVs, where it supports the seamless integration of electric and traditional power sources.
AUIRG4PH50S's Manufacturer
Infineon Technologies, a global leader in semiconductor manufacturing, epitomizes innovation and reliability in the ever-evolving world of electronics. With a rich legacy and a diverse portfolio spanning microcontrollers, power semiconductors, sensors, and security solutions, Infineon consistently pushes technological boundaries to redefine industry standards.
Conclusion
With AUIRG4PH50S's high voltage performance, robust power handling, and automotive-grade quality, it's poised to revolutionize power electronics and motor control applications.
