L78L05ACZ: Features, Specs & More
In this comprehensive article, we'll delve into the intricacies of the L78L05ACZ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
L78L05ACZ's Overview

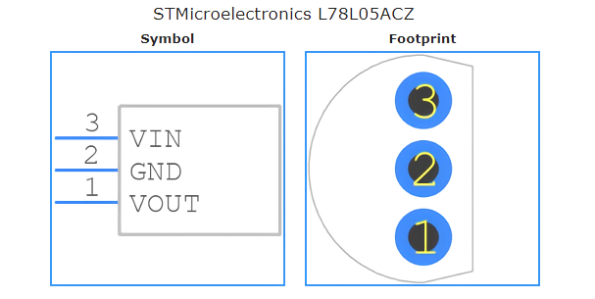

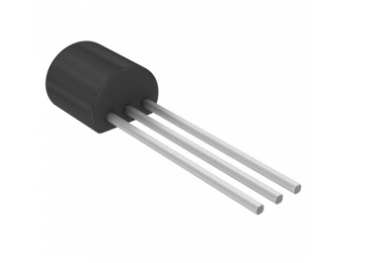

The STMicroelectronics L78L05ACZ is a standard regulator designed to provide a stable, fixed output voltage of 5V with a maximum output current of 0.1A. Encapsulated in a 3-pin TO-92 package, this component offers reliability and efficiency for a wide range of electronic applications.
Key Features
Let's delve into the standout features that make L78L05ACZ a game-changer:
· With a fixed output voltage of 5V, the L78L05ACZ ensures consistent performance in voltage regulation.
· Packaged in a TO-92 package, this regulator offers a compact footprint, making it suitable for space-constrained designs.
· Equipped with short circuit protection, the L78L05ACZ safeguards against potential damage caused by overloads or faults.
· The inclusion of thermal shutdown protection prevents overheating, enhancing the reliability and longevity of the component.
Specifications
Now, let's delve into the technical specifications that make the L78L05ACZ a standout choice for electronic projects:
Type | Parameter |
Number of Outputs | 1 |
Polarity | Positive |
Accuracy (%) | ±4 |
Output Type | Fixed |
Output Voltage (V) | 5 |
Maximum Output Current (A) | 0.1 |
Maximum Input Voltage (V) | 30 |
Line Regulation | 150mV |
Load Regulation | 60mV |
Maximum Quiescent Current (mA) | 6 |
Junction to Ambient | 200°C/W |
Special Features | Short Circuit Protection|Thermal Shutdown Protection |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Industrial |
Packaging | Bag |
Mounting | Through Hole |
Package Height | 4.95(Max) |
Package Width | 3.94(Max) |
Package Length | 4.95(Max) |
PCB changed | 3 |
Standard Package Name | TO |
Supplier Package | TO-92 |
Pin Count | 3 |
Lead Shape | Through Hole |
Applications
The versatility of the L78L05ACZ makes it suitable for various electronic applications, including but not limited to:
· Power Supplies: Ideal for providing regulated power in electronic circuits and devices.
· Embedded Systems: Used in microcontroller-based systems, IoT devices, and other embedded applications.
· Consumer Electronics: Commonly found in battery chargers, voltage regulators, and small appliances.
· Automotive Electronics: Suitable for automotive systems requiring stable voltage regulation.
L78L05ACZ's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
In conclusion, the STMicroelectronics L78L05ACZ emerges as a standout solution for power regulation needs. Its compact design, robust features, and reliable performance make it a preferred choice for engineers and hobbyists alike.
