What Are Isolated Gate Drivers?
With the rapid advancement of power electronics technology, isolated gate drivers play a pivotal role as a critical component in various sectors. Whether it's industrial automation, power systems, electric vehicles, or renewable energy systems, isolated gate drivers are indispensable. In this article, we'll delve into the definition, characteristics and advantages, key parameters, applications, types, and more regarding isolated gate drivers.
Catalog
I. What are Isolated Gate Drivers?
II. Characteristics & Advantages
I. What are Isolated Gate Drivers?

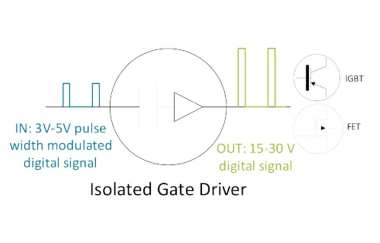

Isolated gate drivers are devices designed to isolate input and output signals, aiming to protect low-voltage circuits from interference from the high-voltage side. Typically, these drivers consist of input terminals, isolation layers, output terminals, and drive circuits. The input terminals receive signals from the control signal source, while the isolation layer provides electrical isolation between input and output. The output terminals are connected to the gate of power devices, with the drive circuit responsible for regulating the output signal to control the conduction and cutoff of power devices. These drivers are commonly used to control power semiconductor devices such as MOSFETs or IGBTs, enabling efficient energy conversion and power electronic applications.
II. Characteristics & Advantages
· Electrical Isolation: Isolated design effectively isolates high-voltage and low-voltage circuits, enhancing system safety and stability.
· High Response Speed: Isolated gate drivers can swiftly adjust output signals, facilitating rapid conduction and cutoff of power devices, thereby improving system response speed.
· Interference Resistance: Due to electrical isolation, isolated gate drivers exhibit strong resistance to interference from the high-voltage side, safeguarding low-voltage circuits from damage.
III. Key Parameters
· Isolation Voltage: Refers to the maximum voltage that the isolation layer can withstand, usually measured in kilovolts (kV).
· Response Time: The interval from receiving input signals to generating output signals, crucial for dynamic responsiveness of the system.
· Output Power: Indicates the maximum power that the driver can output, typically measured in watts (W).
· Operating Temperature Range: Specifies the temperature range within which the driver can operate normally, varying according to different application scenarios.
IV. Types
Isolated gate drivers are primarily categorized into the following types:
· Optocoupler Type: Utilizes optocoupler devices to achieve electrical isolation between input and output, featuring high voltage tolerance and good interference resistance.
· Magnetic Coupling Type: Implements electrical isolation between input and output through magnetic components, typically featuring higher isolation voltage and a broader application range.
· Opto-magnetic Coupling Type: Combines the advantages of optocoupling and magnetic coupling, offering high isolation performance and good response speed simultaneously.
V. Applications
Isolated gate drivers find wide-ranging applications in various fields:
· Industrial Automation: Used to control power semiconductor devices in industrial equipment, enabling precise control and regulation. For instance, the CM100DY-24A model from ABB's IGBT module driver series is commonly employed to control motors and actuators in industrial robots, ensuring their stable and efficient operation.
· Power Systems: Applied in power transmission and distribution systems to control switchgear and inverters, enhancing system efficiency and stability. For example, Infineon's EiceDRIVER™ 2EDN series isolated gate drivers, as utilized in the Tesla Model S, effectively control motors in electric vehicles, enhancing vehicle efficiency and performance.
· Electric Vehicles: Employed to control motor drives in electric vehicles, facilitating efficient energy conversion and power output. Siemens' DILM AC contactor series, utilizing specially designed isolated gate drivers, can control high-voltage switchgear in power systems, ensuring the reliable operation of power systems.
· Renewable Energy Systems: Utilized in solar, wind, and other renewable energy generation systems to control inverters and converters, converting DC energy into AC energy. For instance, Delta Electronics' PM3000 series solar inverters incorporate isolated gate drivers, enabling efficient control of solar energy generation systems and improving energy conversion efficiency.
VI. Conclusion
Isolated gate drivers play an indispensable role in power electronic systems, with their efficient and reliable performance making them the preferred choice across various application scenarios. With ongoing technological advancements, the design and functionality of isolated gate drivers continue to evolve, providing robust support for the development of power electronics. In the future, as technology advances and applications expand, isolated gate drivers will continue to play a crucial role in driving the development and innovation of power electronic technology.
