LT1376HVCS8#TRPBF: Features, Specs & More
In the realm of electronics, the ADI LT1376HVCS8#TRPBF stands out as a powerhouse synchronous step-down DC-DC converter. In this comprehensive article, we'll delve into the intricacies of the LT1376HVCS8#TRPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LT1376HVCS8#TRPBF's Manufacturer
LT1376HVCS8#TRPBF's Overview

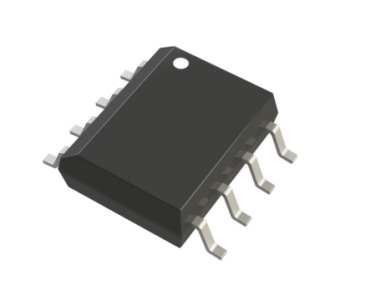

ADI LT1376HVCS8#TRPBF is a synchronous step-down converter designed to efficiently convert voltage from 5V to 30V to a lower output voltage ranging from 2.42V to 25.8V. Its compact 8-pin SOIC package and high efficiency make it an ideal choice for a wide range of applications, from portable electronics to industrial systems.

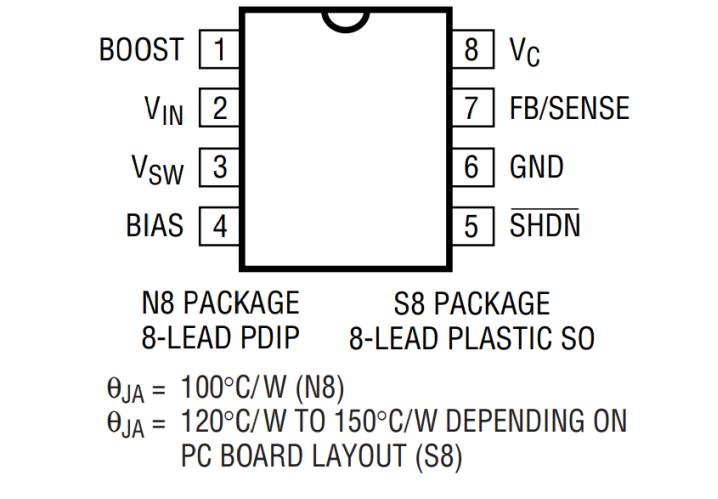

△ TOP VIEW
Key Features
Let's delve into the standout features that make LT1376HVCS8#TRPBF a game-changer:
· This converter efficiently steps down voltages from 5V to 30V to a versatile range of 2.42V to 25.8V, catering to a variety of applications.
· Offering flexibility, the output type is adjustable, ensuring compatibility with diverse electronic setups.
· Operating at a swift 560 kHz switching frequency, this regulator delivers reliable performance.
· With a maximum output current of 1.5A, the ADI LT1376HVCS8#TRPBF handles demanding tasks with ease.
· From 5V to 30V, this converter accommodates a broad spectrum of input voltages, enhancing its versatility.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LT1376HVCS8#TRPBF:
Type | Parameter |
Type | Synchronous Step Down |
Output Type | Adjustable |
Switching Frequency (kHz) | 560 |
Switching Regulator | Yes |
Number of Outputs | 1 |
Output Voltage (V) | 2.42 to 25.8 |
Maximum Output Current (A) | 1.5 |
Minimum Input Voltage (V) | 5 |
Maximum Input Voltage (V) | 30 |
Operating Supply Voltage (V) | 5 to 30 |
Typical Switch Current (A) | 2 |
Line Regulation | 0.01%/V |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Commercial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 3.99(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The versatility of the ADI LT1376HVCS8#TRPBF extends across various applications, including but not limited to:
· Portable Electronics: From smartphones to wearable devices, the LT1376HVCS8#TRPBF plays a pivotal role in maximizing battery life and optimizing power usage, ensuring uninterrupted functionality.
· Industrial Automation: In industrial settings, where reliability is paramount, this converter regulates voltage levels with precision, contributing to the seamless operation of machinery and equipment.
· Automotive Electronics: With the demand for energy-efficient automotive solutions on the rise, the LT1376HVCS8#TRPBF caters to the power management needs of modern vehicles, enhancing performance and fuel efficiency.
LT1376HVCS8#TRPBF's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
In the dynamic landscape of electronics, ADI LT1376HVCS8#TRPBF shines as a beacon of efficiency, reliability, and versatility. With its adjustable output voltage, high efficiency, and compact form factor, this synchronous step-down converter caters to a myriad of applications across industries.
