AT89S52-24PU: Features, Specs & More
In the realm of electronics, the Microchip AT89S52-24PU stands tall as a powerhouse microcontroller, embodying the essence of innovation and efficiency. In this comprehensive article, we'll delve into the intricacies of the AT89S52-24PU, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

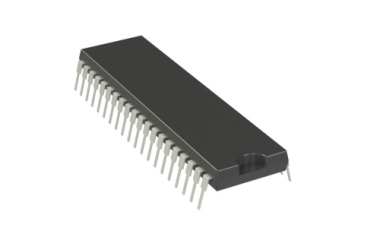

AT89S52-24PU's Overview
The AT89S52-24PU belongs to the illustrious AT89 family, renowned for its exceptional performance and reliability. Operating on the 8-bit 8051 CISC instruction set architecture, this MCU is a powerhouse of efficiency and functionality. Designed with the 8051 core architecture, it boasts a maximum CPU frequency and clock rate of 24 MHz, ensuring lightning-fast processing speeds for projects.
Key Features
Let's delve into the standout features that make the Microchip AT89S52-24PU a standout in the world of microcontrollers:
· With a maximum CPU frequency of 24 MHz, this MCU delivers exceptional processing power, ensuring swift execution of commands.
· Equipped with 8KB of Flash program memory and 256B of RAM, the AT89S52-24PU provides ample storage for your code and data, facilitating complex operations.
· Equipped with 256B of RAM, the AT89S52-24PU ensures efficient data handling and manipulation, enhancing the overall performance of systems.
· Featuring UART interface type, this MCU offers seamless communication capabilities, enabling connectivity with various peripheral devices.
· Featuring 32 I/O pins, including USART, UART, SPI, I2C, and more, the AT89S52-24PU offers unparalleled versatility for interfacing with a wide range of peripherals.
· Designed to withstand demanding industrial environments, this MCU operates flawlessly across a wide temperature range (-40°C to 85°C), ensuring reliable performance in any condition.
· Built using CMOS process technology, the AT89S52-24PU combines efficiency with reliability, making it suitable for diverse industrial applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AT89S52-24PU:
Type | Parameter |
Family Name | AT89 |
Instruction Set Architecture | CISC |
Device Core | 8051 |
Core Architecture | 8051 |
Maximum CPU Frequency (MHz) | 24 |
Maximum Clock Rate (MHz) | 24 |
Data Bus Width (bit) | 8 |
Program Memory Type | Flash |
Program Memory Size | 8KB |
RAM Size | 256B |
Maximum Expanded Memory Size | 64KB |
Programmability | Yes |
Process Technology | CMOS |
Interface Type | UART |
Number of I/Os | 32 |
No. of Timers | 3 |
USART | 0 |
UART | 1 |
USB | 0 |
SPI | 0 |
I2C | 0 |
I2S | 0 |
CAN | 0 |
Ethernet | 0 |
Watchdog | 1 |
Parallel Master Port | No |
Real Time Clock | No |
Minimum Operating Supply Voltage (V) | 4 |
Typical Operating Supply Voltage (V) | 5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 4.83(Max) - 0.38(Min) |
Package Width | 13.97(Max) |
Package Length | 52.58(Max) |
PCB changed | 40 |
Standard Package Name | DIP |
Supplier Package | PDIP |
Pin Count | 40 |
Lead Shape | Through Hole |
Applications
The versatility of the AT89S52-24PU lends itself to a myriad of applications across various industries, including but not limited to:
· Embedded Systems: Powering embedded systems in automotive, industrial, and consumer electronics applications.
· Automation: Controlling and monitoring processes in industrial automation systems.
· IoT (Internet of Things): Serving as the brain of IoT devices, facilitating data acquisition and communication.
· Robotics: Driving the intelligence behind robotic systems, enabling precise control and autonomy.
· Smart Devices: Fueling innovation in smart home devices, wearable technology, and more.
AT89S52-24PU's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
In conclusion, the Microchip AT89S52-24PU stands as a testament to the ingenuity and advancement in the field of microcontrollers. With its robust architecture, extensive feature set, and unparalleled reliability, it continues to redefine possibilities in the realm of embedded systems development.
