ISM330DHCXTR: Features, Specs & More
In the fast-evolving world of electronics, reliable and high-performance components are essential for building innovative products. In this comprehensive article, we'll delve into the intricacies of the ISM330DHCXTR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ISM330DHCXTR's Overview

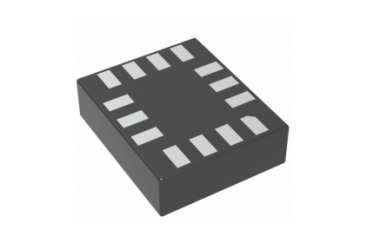

The STMicroelectronics ISM330DHCXTR is a digital-output accelerometer and gyroscope designed to provide precise and reliable motion sensing capabilities. This device is part of ST's family of high-performance, low-power MEMS sensors and offers a compact, surface mount package that fits a wide variety of applications.

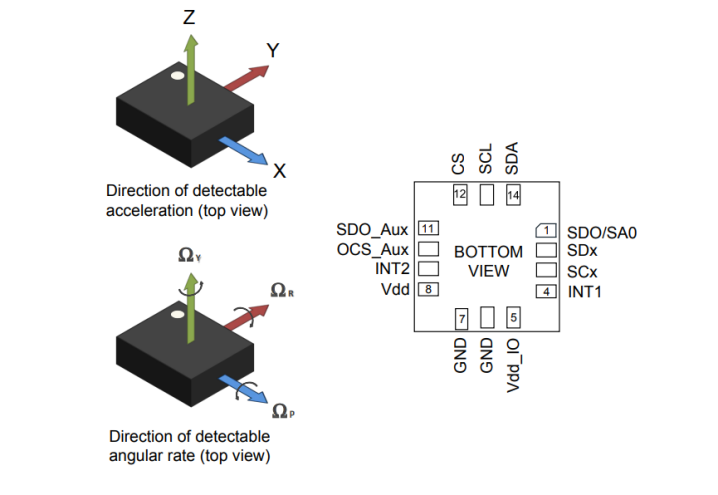

△ Pin connections
Key Features
Let's delve into the standout features that make the ISM330DHCXTR a standout in the world of electronics:
· The ISM330DHCXTR features a digital output, making it easier to interface with a variety of digital systems and devices.
· With both accelerometer and gyroscope functionalities, the ISM330DHCXTR offers a comprehensive solution for motion sensing.
· Measuring just 3mm x 2.5mm x 0.86mm, this sensor is ideal for applications where space is limited.
· The device's surface mount design facilitates easy integration into circuit boards and other electronics.
· The ISM330DHCXTR is designed for efficiency, minimizing power usage while delivering reliable performance.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ISM330DHCXTR:
Type | Parameter |
Mounting | Surface Mount |
Package Height | 0.86(Max) |
Package Width | 2.5 |
Package Length | 3 |
PCB changed | 14 |
Standard Package Name | LGA |
Supplier Package | LGA |
Pin Count | 14 |
Applications
The ISM330DHCXTR can be used in a wide range of applications across various industries:
· Consumer Electronics: Ideal for smartphones, tablets, and wearable devices that require motion sensing for features such as screen rotation and gaming.
· Automotive: Used in advanced driver assistance systems (ADAS) and electronic stability control (ESC) for precise motion and orientation detection.
· Industrial: Employed in robotic systems, drones, and automated guided vehicles for navigation and stabilization.
· Healthcare: Integrated into medical devices and health monitoring wearables for patient motion tracking and assessment.
ISM330DHCXTR's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics ISM330DHCXTR is a versatile and high-performance sensor that delivers reliable motion sensing capabilities for a variety of applications. Its compact size, dual sensing functionalities, and low power consumption make it an excellent choice for modern electronics devices.
