S25FL064LABNFI040: Features, Specs & More
In the world of electronics, flash memory plays a crucial role in data storage and retrieval. One product that stands out in this space is the Infineon S25FL064LABNFI040, a high-performance NOR flash memory chip designed for various applications. In this comprehensive article, we'll delve into the intricacies of the S25FL064LABNFI040, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
S25FL064LABNFI040's Manufacturer
S25FL064LABNFI040's Overview

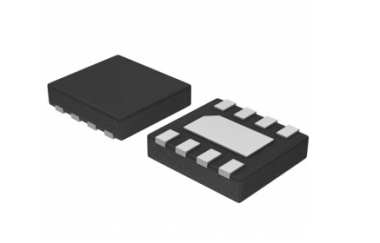

The Infineon S25FL064LABNFI040 is a 64-megabit NOR flash memory chip that operates with a 3V/3.3V supply voltage. It supports serial interfaces such as SPI, Dual SPI, and Quad SPI, providing versatile options for data transfer. The chip comes in an 8-pin USON EP (Ultra-thin Small Outline No-lead) package, making it a compact and efficient choice for your design.
Key Features
Let's delve into the standout features that make the S25FL064LABNFI040 a standout in the world of electronics:
· With 64 Mbit of chip density, this memory chip can store a significant amount of data.
· The chip operates on a typical voltage of 3.3V, with a range of 2.7V to 3.6V, ensuring efficient power consumption.
· With a maximum access time of 8 ns, the chip offers quick data retrieval.
· The chip supports programmability, offering flexibility for different applications.
· The chip can operate in temperatures ranging from -40°C to 85°C, making it suitable for various environments.
· The chip features surface mounting, making it easy to integrate into different electronic designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the S25FL064LABNFI040:
Type | Parameter |
Cell Type | NOR |
Chip Density (bit) | 64M |
Architecture | Sectored |
Boot Block | Yes |
Block Organization | Symmetrical |
Location of Boot Block | Bottom|Top |
Address Bus Width (bit) | 32 |
Sector Size | 4Kbyte x 2048 |
Page Size | 256byte |
Number of Bits/Word (bit) | 1/2/4 |
Number of Words | 64M/32M/16M |
Programmability | Yes |
Timing Type | Synchronous |
Max. Access Time (ns) | 8 |
Maximum Erase Time (S) | 150/Chip |
Maximum Programming Time (ms) | 1.35/Page |
Process Technology | 65nm, Floating Gate |
Interface Type | Serial (SPI, Dual SPI, Quad SPI) |
Minimum Operating Supply Voltage (V) | 2.7 |
Maximum Operating Frequency (MHz) | 108 |
Typical Operating Supply Voltage (V) | 3|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Programming Voltage (V) | 2.7 to 3.6 |
Operating Current (mA) | 30 |
Program Current (mA) | 25 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Command Compatible | Yes |
ECC Support | No |
Support of Page Mode | No |
Minimum Endurance (Cycles) | 100000 |
Mounting | Surface Mount |
Package Height | 0.52 |
Package Width | 4 |
Package Length | 4 |
PCB changed | 8 |
Standard Package Name | SON |
Supplier Package | USON EP |
Pin Count | 8 |
*S25FL064LABNFI040's datasheet
Applications
The Infineon S25FL064LABNFI040 is suitable for a wide range of applications across multiple industries:
· Automotive: Ideal for car infotainment systems and other automotive electronics due to its robust performance and reliability.
· Industrial: Well-suited for industrial controls, automation systems, and IoT devices.
· Consumer Electronics: Great for use in consumer electronics such as smart home devices, wearables, and other gadgets.
· Networking: Can be utilized in networking equipment for its high-speed data transfer capabilities.
S25FL064LABNFI040's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon S25FL064LABNFI040 is a powerful and versatile NOR flash memory chip that offers a range of features and specifications ideal for various applications. Its high performance, reliability, and flexibility make it a valuable asset for electronics designers and engineers looking for a dependable memory solution.
