AD7616BSTZ: Features, Specs & More
Let's dive into the AD7616BSTZ, a 16-bit dual analog-to-digital converter (ADC) designed for precision and performance. In this comprehensive article, we'll delve into the intricacies of the AD7616BSTZ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AD7616BSTZ's Overview

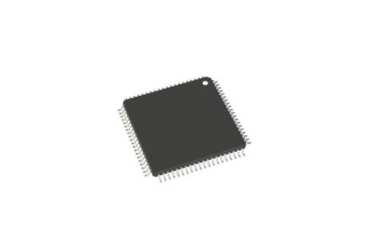

The AD7616BSTZ is a high-performance 16-channel, 16-bit dual ADC SAR converter designed for general-purpose applications. It operates with a sampling rate of up to 1 Msps, making it a versatile choice for various electronics projects. The device supports multiple digital interfaces, including parallel and serial communication (1-Wire, 2-Wire, SPI, QSPI, Microwire), offering flexibility in your designs.
Key Features
Let's delve into the standout features that make the AD7616BSTZ a standout in the world of electronics:
· 16-Bit Resolution: The AD7616BSTZ boasts a 16-bit resolution, ensuring accurate and precise data conversion.
· 16 Channels: This ADC supports up to 16 input channels, allowing you to handle multiple signals simultaneously.
· Dual ADC Architecture: The dual ADC architecture provides high throughput and efficient data processing.
· High Sampling Rate: With a 1Msps sampling rate, this ADC can handle high-speed data acquisition applications.
· Versatile Digital Interface: The AD7616BSTZ supports various digital interface types, including Parallel, Serial (1-Wire, 2-Wire, SPI, QSPI, Microwire), offering flexibility in data communication.
· Bipolar Input Voltage: It supports bipolar input voltages of ±2.5V, ±5V, and ±10V, providing adaptability for different signal types.
· Internal and External Voltage Reference: This ADC supports both internal and external voltage references for accurate signal conversion.
· Low Power Dissipation: With a typical power dissipation of 230 mW, this ADC is energy-efficient and suitable for battery-powered applications.
· Wide Temperature Range: It operates in a temperature range of -40°C to 125°C, making it suitable for harsh environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AD7616BSTZ:
Type | Parameter |
Converter Type | General Purpose |
Architecture | SAR |
Resolution | 16bit |
Number of ADCs | 2 |
Number of Input Channels | 16 |
Sampling Rate | 1Msps |
Digital Interface Type | Parallel|Serial (1-Wire, 2-Wire, SPI, QSPI, Microwire) |
Input Type | Voltage |
Input Signal Type | Single-Ended|Pseudo-Differential |
Voltage Reference | Internal|External |
Polarity of Input Voltage | Bipolar |
Voltage Supply Source | Single |
Input Voltage | ±2.5V/±5V/±10V |
Maximum Supply Current | 65 |
Typical Power Dissipation (mW) | 230 |
Maximum Power Dissipation (mW) | 350 |
Integral Nonlinearity Error | ±2LSB |
Full Scale Error | ±32LSB |
Signal to Noise Ratio | 93dB(Typ) |
No Missing Codes (bit) | 16 |
Sample and Hold | Yes |
Single-Ended Input | Yes |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 14 |
Package Length | 14 |
PCB changed | 80 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 80 |
Lead Shape | Gull-wing |
Applications
The AD7616BSTZ's features make it a great choice for a wide variety of applications:
· Data Acquisition Systems: Its high resolution and low power consumption make it ideal for precise and energy-efficient data collection.
· Instrumentation: With its multiple input channels and high signal-to-noise ratio, the device is perfect for measurement and monitoring tasks.
· Medical Devices: Its reliability and accuracy make it a preferred choice for medical instrumentation.
· Industrial Automation: The wide operating temperature range and robust performance make it well-suited for industrial environments.
AD7616BSTZ's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
The AD7616BSTZ is a powerful and versatile ADC chip that caters to a range of applications in the electronics field. With its 16-bit resolution, simultaneous sampling capabilities, and flexible input options, it is a strong choice for anyone in need of precise and reliable data conversion.
