What Are Image Sensors?
With the advent of the digital age, image sensors have become a crucial component in the electronics industry. This article provides a comprehensive overview of image sensors, including their definition, working principles, characteristics and advantages, applications, and types.
Catalog
III. Characteristics and Advantages

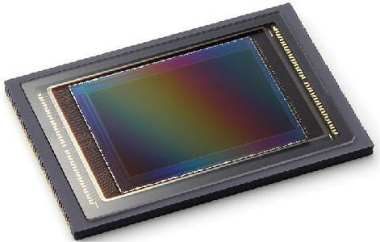

I. What are Image Sensors?
An image sensor, or imager, is a sensor that detects and conveys information used to form an image. It does this by converting the variable attenuation of light waves (as they pass through or reflect off objects) into signals—small bursts of current that convey the information. These waves can be light or other electromagnetic radiation.
II. Working Principle
The working principle of image sensors is similar to that of the human eye. When light enters the surface of the sensor, photons excite electrons in the semiconductor, generating an electric charge. This charge is then converted into an electrical signal and processed by circuits to form a digital image. In a camera system, the image sensor receives photons focused by a lens or other optics. Depending on the type of sensor—CCD or CMOS—the information is transmitted to the next stage as either a voltage or a digital signal.
III. Characteristics and Advantages
· High Resolution: Modern image sensors have high resolution, allowing them to capture detailed images and meet various high-quality imaging needs.
· Low Power Consumption: CMOS image sensors typically have lower power consumption, which helps extend the battery life of devices.
· High Sensitivity: Capable of capturing clear images even in low-light conditions, improving image quality.
· Fast Response: Image sensors have fast response times, enabling them to capture dynamic scenes and reduce motion blur.
IV. Applications
· Photography and Videography: Image sensors are widely used in digital cameras, smartphones, and camcorders, providing high-quality photos and videos.
· Security and Surveillance: Surveillance cameras use image sensors to monitor various locations, enhancing security.
· Medical Imaging: Medical image sensors are used in X-rays, CT scans, endoscopes, and other imaging devices to assist doctors in diagnosis and treatment.
· Industrial Applications: Machine vision systems use image sensors for automated inspection, quality control, and robot navigation.
· Automotive Electronics: Self-driving cars use image sensors to detect the surrounding environment and enable autonomous driving.
V. Types
The two main types of digital image sensors are the charge-coupled device (CCD) and the active-pixel sensor (CMOS sensor). Both CCD and CMOS sensors are based on metal–oxide–semiconductor (MOS) technology, with MOS capacitors being the building blocks of a CCD and MOSFET amplifiers being the building blocks of a CMOS sensor.
· CCD (Charge-Coupled Device) Sensors: Each pixel in a CCD sensor is an analog device. When light strikes the chip, each photosensor holds a small electric charge. The row of pixels closest to the output amplifiers amplifies and outputs these charges. Then, each row of pixels shifts its charges one row closer to the amplifiers, filling the empty row closest to the amplifiers. This process repeats until all the rows of pixels have had their charges amplified and output. This method ensures high-quality and low-noise images, making CCD sensors commonly used in high-end broadcast-quality video cameras.
· CMOS (Active-Pixel Sensor) Sensors: A CMOS image sensor has an amplifier for each pixel, compared to the few amplifiers in a CCD sensor. This means that the photon-capturing area in CMOS sensors is smaller. However, this issue has been addressed by using microlenses in front of each photodiode, which focus light that would have otherwise hit the amplifier onto the photodiode. Additionally, some CMOS image sensors use backside illumination technology to increase the number of photons hitting the photodiode. CMOS sensors can be implemented with fewer components, use less power, and provide faster readout than CCD sensors. They are also less vulnerable to static electricity discharges, making them widely used in small consumer electronics such as smartphones and digital cameras.
VI. Conclusion
As a critical component in the electronics industry, image sensors have a wide range of applications and market demand. Their continuous innovation and development are driving the progress of digitalization and intelligence, providing high-quality images and videos for various devices. With ongoing technological advancements, image sensors are expected to develop more new application scenarios, bringing more convenience and possibilities to people's lives and work.
