OPI123: Features, Specs & More
Welcome to our comprehensive guide on the TT Electronics OPI123, a powerful component in the realm of electronics – the optocoupler. In this comprehensive article, we'll delve into the intricacies of the OPI123, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
OPI123's Overview

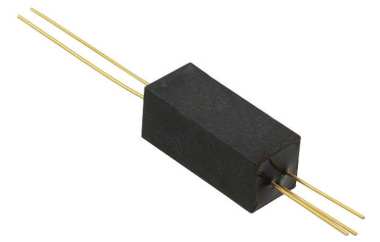

The TT Electronics OPI123 is an optocoupler, a vital component in electronic circuits that allows for the transfer of electrical signals between isolated circuits while ensuring galvanic isolation. This particular optocoupler features a DC input and output, with a single Darlington output device. Its compact design and efficient performance make it a popular choice in various electronic applications.
Key Features
Let's delve into the standout features that make the OPI123 a standout in the world of electronics:
· With galvanic isolation capabilities, the OPI123 ensures that the input and output circuits are electrically separated, preventing potential damage from voltage spikes and electrical noise.
· The inclusion of a Darlington output device enhances the OPI123's ability to amplify signals, making it suitable for applications requiring high gain.
· From -55°C to 100°C, the OPI123 can withstand extreme temperature conditions, ensuring reliability in diverse environments.
· Measuring just 8.13mm in height, width, and with a length of 20.32mm, the OPI123 boasts a compact form factor ideal for space-constrained applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the OPI123:
Type | Parameter |
Output Type | DC |
Input Type | DC |
Output Device | Darlington |
Number of Channels per Chip | 1 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 100 |
Maximum Forward Voltage (V) | 1.5 |
Maximum Collector-Emitter Voltage (V) | 20 |
Maximum Collector Current (mA) | 5(Min) |
Maximum Collector-Emitter Saturation Voltage (mV) | 1200 |
Maximum Power Dissipation (mW) | 250 |
Maximum Reverse Voltage (V) | 3 |
Maximum Forward Current (mA) | 150 |
Packaging | Bag |
Minimum Current Transfer Ratio (%) | 50 |
Current Transfer Ratio Test Current (mA) | 10 |
Typical Rise Time (us) | 40 |
Typical Fall Time (us) | 40 |
Mounting | Through Hole |
Package Height | 8.13(Max) |
Package Width | 8.13(Max) |
Package Length | 20.32 |
PCB changed | 5 |
Pin Count | 5 |
Lead Shape | Through Hole |
Applications
Now that we've explored its features and specifications, let's discuss the applications where the OPI123 excels:
· Industrial Automation: The OPI123 is widely used in industrial automation systems for signal isolation and noise reduction, ensuring reliable operation in harsh industrial environments.
· Power Supplies: Its high collector current and voltage capabilities make it suitable for use in power supply circuits, providing isolation between control circuits and high-voltage components.
· Motor Control: In motor control applications, the OPI123 facilitates precise control by isolating the control signals from the high-power components, enhancing safety and performance.
· Medical Devices: The OPI123's compact size and high reliability make it an excellent choice for medical devices requiring signal isolation, such as patient monitoring systems and diagnostic equipment.
OPI123's Manufacturer
TT Electronics is a global provider of design-led, advanced electronics technologies for performance critical applications in specialised markets. TT benefits from enduring megatrends in structurally high-growth markets including healthcare, aerospace, defense, electrification, and automation. TT invests in R&D to create designed-in products where reliability is mission-critical. Products designed and manufactured include sensors, power management, and connectivity solutions.
Conclusion
In conclusion, the TT Electronics OPI123 stands as a testament to the ingenuity and advancement within the field of electronics. With its robust features, precise specifications, and diverse applications, this optocoupler opens doors to endless possibilities in circuit design and innovation.
