STM32F030C8T6: Features, Specs & More
When it comes to microcontrollers, STMicroelectronics' STM32F030C8T6 stands out as a versatile and powerful choice for a variety of applications. In this comprehensive article, we'll delve into the intricacies of the STM32F030C8T6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

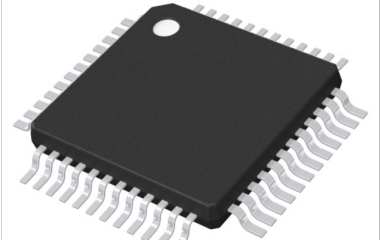

STM32F030C8T6's Overview
The STM32F030C8T6 is a 32-bit MCU that is part of the STM32F family, known for its efficiency and robust performance. Built on the ARM Cortex M0 architecture, this MCU is designed to offer a balanced mix of performance and power efficiency, making it ideal for cost-sensitive applications.
Key Features
Let's delve into the standout features that make the STM32F030C8T6 a standout in the world of electronics:
· ARM Cortex M0 Core: Offers a maximum CPU frequency of 48 MHz, providing a powerful processing capability for various tasks.
· Memory: Includes 64KB of Flash memory and 8KB of RAM, ample for storing code and data.
· Interfaces: Supports I2C, SPI, and USART interfaces, facilitating communication with other peripherals.
· Timers and ADC: Equipped with 7 timers and a single 12-channel, 12-bit ADC for precise time and analog signal measurements.
· Real-Time Clock: Includes a real-time clock for timekeeping applications.
· Power Efficiency: Operates at a typical voltage of 2.5V to 3.3V, with a minimum operating voltage of 2.4V and a maximum of 3.6V.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STM32F030C8T6:
Type | Parameter |
Family Name | STM32F |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M0 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 48 |
Maximum Clock Rate (MHz) | 48 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 64KB |
RAM Size | 8KB |
Programmability | Yes |
Interface Type | I2C/SPI/USART |
Number of I/Os | 39 |
No. of Timers | 7 |
Number of ADCs | Single |
ADC Channels | 12 |
ADC Resolution (bit) | 12 |
USART | 2 |
UART | 0 |
USB | 0 |
SPI | 2 |
I2C | 2 |
I2S | 0 |
CAN | 0 |
Ethernet | 0 |
Watchdog | 1 |
Parallel Master Port | No |
Real Time Clock | Yes |
Minimum Operating Supply Voltage (V) | 2.4 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Power Dissipation (mW) | 364 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 7 |
Package Length | 7 |
PCB changed | 48 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 48 |
Lead Shape | Gull-wing |
Applications
The versatility of the STM32F030C8T6 makes it suitable for a wide range of applications:
· Consumer Electronics: Used in household appliances, remote controls, and personal gadgets.
· Industrial Automation: Ideal for motor control, sensors, and industrial communication systems.
· Healthcare Devices: Powers medical devices such as portable monitors and diagnostic equipment.
· Automotive: Utilized in automotive control systems and infotainment devices.
· IoT Devices: Forms the backbone of many IoT applications, offering connectivity and control.
STM32F030C8T6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STM32F030C8T6 microcontroller is a powerful and versatile component suitable for a broad spectrum of applications. Its combination of robust features, efficient performance, and reliable manufacturing makes it a top choice for developers and engineers. Explore the potential of the STM32F030C8T6 in your next project and experience the benefits of working with a top-tier microcontroller from STMicroelectronics.
