STM32F427VGT6: Features, Specs & More
In the ever-evolving world of electronics, microcontrollers play a pivotal role in driving innovation and functionality. One such powerhouse is the STMicroelectronics STM32F427VGT6, a 32-bit ARM Cortex M4 RISC microcontroller. In this comprehensive article, we'll delve into the intricacies of the STM32F427VGT6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
STM32F427VGT6's Overview

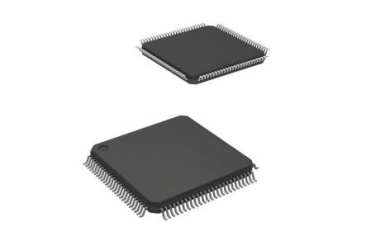

The STM32F427VGT6 is a high-performance microcontroller designed for a wide range of applications. It belongs to the STM32F family and is built on the ARM Cortex M4 architecture, known for its balance of performance and power efficiency. This microcontroller is equipped with 1MB of Flash memory, 260KB of RAM, and supports a variety of interfaces, making it a versatile choice for developers.
Key Features
Let's delve into the standout features that make the STM32F427VGT6 a standout in the world of electronics:
· With a maximum CPU frequency of 180 MHz, the STM32F427VGT6 offers robust processing power for demanding applications.
· The 1MB Flash memory and 260KB RAM provide ample space for code and data storage.
· Supports multiple communication interfaces including CAN, Ethernet, I2C, I2S, SPI, UART, USART, and USB, enabling seamless connectivity.
· Equipped with 14 timers and 2 PWM channels, it offers precise control for various timing and control applications.
· Features triple 12-bit ADCs with 16 channels each and dual 12-bit DACs with 2 channels each, ensuring high accuracy in analog signal processing.
· Designed to operate within a wide temperature range of -40°C to 85°C, making it suitable for industrial applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STM32F427VGT6:
Type | Parameter |
Family Name | STM32F |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M4 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 180 |
Maximum Clock Rate (MHz) | 180 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 1MB |
RAM Size | 260KB |
Programmability | Yes |
Process Technology | CMOS |
Interface Type | CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB |
Number of I/Os | 82 |
No. of Timers | 14 |
Timers Resolution (bit) | 16/32 |
PWM | 2 |
Number of ADCs | Triple |
ADC Channels | 16/16/16 |
ADC Resolution (bit) | 12/12/12 |
Number of DACs | Dual |
DAC Channels | 2/2 |
DAC Resolution (bit) | 12/12 |
USART | 4 |
UART | 4 |
USB | 2 |
SPI | 4 |
I2C | 3 |
I2S | 2 |
CAN | 2 |
Ethernet | 1 |
Watchdog | 2 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 1.8 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Power Dissipation (mW) | 465 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 14 |
Package Length | 14 |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
Applications
The STM32F427VGT6 is well-suited for a diverse array of applications, including:
· Industrial Automation: Leveraging its robust performance and wide operating temperature range, it is ideal for industrial control systems and automation equipment.
· Consumer Electronics: Its high processing power and extensive memory make it perfect for advanced consumer devices such as smart home appliances and entertainment systems.
· Medical Devices: With its precise analog signal processing capabilities, it is used in medical monitoring and diagnostic equipment.
· Automotive: The microcontroller’s reliability and communication interfaces make it suitable for automotive applications, including in-vehicle infotainment systems and advanced driver assistance systems (ADAS).
· Networking and Communication: Its Ethernet and USB interfaces are valuable in networking equipment and communication devices.
STM32F427VGT6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STM32F427VGT6 MCU by STMicroelectronics is a versatile and powerful solution for a wide range of applications. Its combination of high performance, extensive peripherals, and robust design make it an excellent choice for developers and engineers looking to build advanced, reliable systems.
